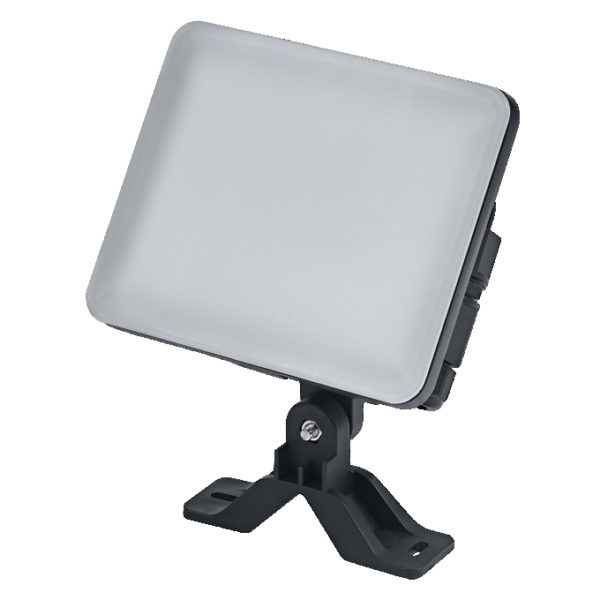

ENDURA® Flood Adjustable 20W 840 Black

ENDURA® Flood Adjustable 20W 840 Black

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854705953 Категория:
Product benefits
  • Customer can adjust the light in all kind of directions according to his needs
  • Easy installation thanks to fast connector, no need for manual wiring work
Areas of application
  • Outdoor
  • Garages
  • Building facades
  • Garden houses
Product features
  • Versatile adjustable bracket: Floodlight can rotate vertically and horizontally
  • Easy possibility to mount on 90° edges thanks to corresponding mounting holes
  • Homogenous illumination thanks to Panel look
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854705953
Nominal wattage

20.00 W
Nominal voltage

220…240 V
Nominal current

145.000 mA
Luminous flux

1700 lm
Luminous efficacy

85 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Beam angle

120 °
Height

160.00 mm
Product weight

271.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-30…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Wall
Protection class

I
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

0.145 A
Inrush current time Th50

2400 µs
Power factor λ

> 0.5
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

2200 lm
Max. number of luminaires per miniature circuit breaker B16

5
Max. number of luminaires per miniature circuit breaker C16

9
Protection class IK (shock resistance)

IK05
Length

131.00 mm
Width

68.00 mm
