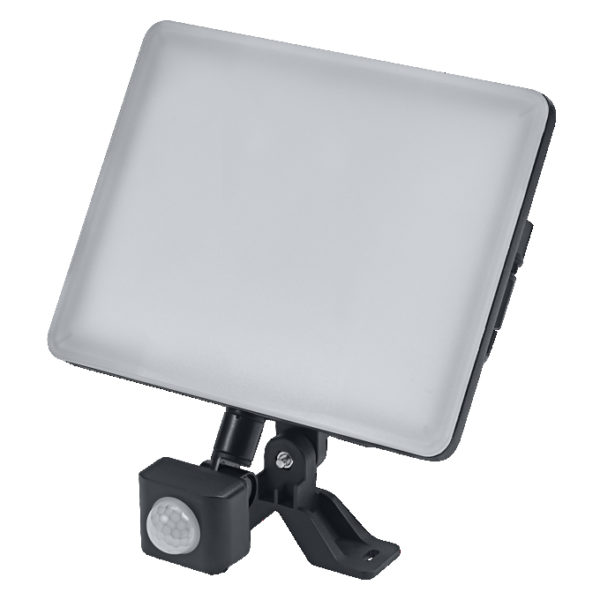

ENDURA® Flood Sensor Adjustable 50W 840 Black

ENDURA® Flood Sensor Adjustable 50W 840 Black

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854706370 Категория:
Product benefits
  • Customer can adjust the light in all kind of directions according to his needs
  • Easy installation thanks to fast connector, no need for manual wiring work
  • Easy adjustment of sensor range, daylight detection and hold time
Areas of application
  • Outdoor
  • Garages
  • Building facades
Product features
  • Versatile adjustable bracket: Floodlight can rotate vertically and horizontally
  • Easy possibility to mount on 90° edges thanks to corresponding mounting holes
  • Homogenous illumination thanks to Panel look
  • Adjustable IR daylight and motion sensor
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854706370
Nominal wattage

50.00 W
Nominal voltage

220…240 V
Nominal current

216.000 mA
Luminous flux

4250 lm
Luminous efficacy

85 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Beam angle

120 °
Height

211.00 mm
Product weight

430.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-30…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Wall
Protection class

I
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

0.215 A
Inrush current time Th50

2200 µs
Power factor λ

> 0.90
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

5500 lm
Max. number of luminaires per miniature circuit breaker B16

11
Max. number of luminaires per miniature circuit breaker C16

18
Protection class IK (shock resistance)

IK05
Length

192.00 mm
Width

92.00 mm
Type of sensor

Lig
Sensor technology

Passive infrared (PIR)
Sensor detection angle

120 °
Detection range of motion sensor

5…8 m
Detection threshold of daylight sensor

5…2000 lx
Sensor IK rating

IK03
