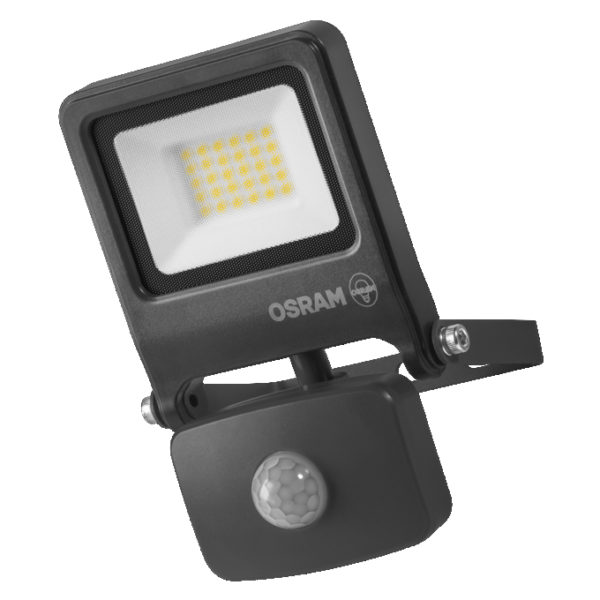

ENDURA® Flood Sensor Warm White PCR 20W Dark Grey

ENDURA® Flood Sensor Warm White PCR 20W Dark Grey

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854487170 Категория:
Product benefits
  • Extremely compact functional design
  • Quick and simple installation thanks to low profile, compact and light weight design
  • Semi-frosted, tempered glass cover for uniform illumination
Areas of application
  • Outdoor use (IP44)
  • Garages
  • Building facades
Product features
  • Luminaire housing is made of 100 % recycled aluminum
  • Small and compact housing size
  • Higher efficiency up to 100 lm/W
  • Very bright and functional outdoor LED luminaires
  • Symmetrical beam angle: 110° x 110°
  • Mounting bracket for up to 180° tilting
  • Type of protection: IP65
  • Connection via 1 m cable, wiring required
  • Adjustable IR daylight and motion sensor with a detection range of up to 9 m
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
GTIN

4099854487170
Nominal wattage

20.00 W
Nominal voltage

220…240 V
Nominal current

100.000 mA
Luminous flux

1800 lm
Luminous efficacy

90 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 °
Height

168.00 mm
Product weight

380.00 g
Product color

Dark grey
Housing color

Dark grey
Body material

Aluminum
Ambient temperature range

-10…+35 °C
Temperature range at storage

-30…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Replaceable light source

No
Mounting type

Surface
Mounting location

Wall
Protection class

I
Mercury content

0.0 mg
Type of emergency operation test

None
With light source

Yes
Cover material

Glass
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

1.54 µs
Power factor λ

> 0.70
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

1900 lm
Max. number of luminaires per miniature circuit breaker B16

128
Max. number of luminaires per miniature circuit breaker C16

128
Protection class IK (shock resistance)

IK06
Length

108.00 mm
Width

65.00 mm
Application environment

Outdoor
Type of sensor

Lig
Sensor technology

Passive infrared (PIR)
Detection range of motion sensor

2…8 m
Detection threshold of daylight sensor

10…2000 lx
Sensor controlled switching time

10 s…8 min
