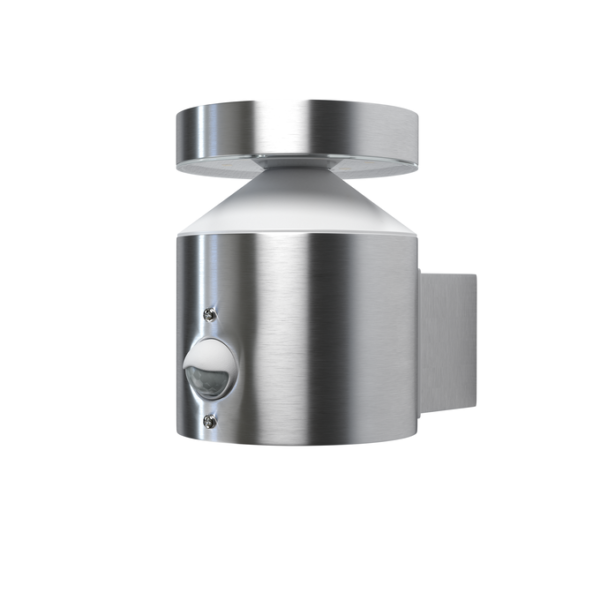

ENDURA Style Cylinder Wall Sensor 6W

ENDURA Style Cylinder Wall Sensor 6W

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854453267 Категория:
Product benefits
  • Energy-efficient thanks to LED technology
  • Easy and quick installation
  • Long-term energy and cost savings (sensor version)
Areas of application
  • Outdoor use (IP44)
  • Building facades
  • Gardens, balconies and other outdoor areas
  • Pathway lighting
  • Driveways
Product features
  • Bright and functional outdoor LED luminaires
  • Housing made of Polycarbonate covered with stainless steel
  • Available as wall, ceiling and bollard luminares
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854453267
Nominal wattage

6.00 W
Nominal voltage

220…240 V
Nominal current

40.000 mA
Luminous flux

360 lm
Luminous efficacy

60 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG0
Height

137.00 mm
Product weight

480.00 g
Product color

Steel
Housing color

Steel
Body material

Stainless steel
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+85 °C
Type of connection

Screw terminal
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

40000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

102,0 mm
Replaceable light source

No
Mounting type

Surface
Protection class

II
Mercury content

0.0 mg
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

> 0.5
Total harmonic distortion

< 120 %
Operating mode

Mains voltage
Total luminous flux of contained light sources

660 lm
Max. number of luminaires per miniature circuit breaker B16

320
Max. number of luminaires per miniature circuit breaker C16

320
Length

150.00 mm
Width

101.00 mm
Application environment

Outdoor
Type of sensor

Moti
Detection range of motion sensor

9 m
Detection threshold of daylight sensor

50…2000 lx
Sensor controlled switching time

2 s…6 min
UGR

< 25
