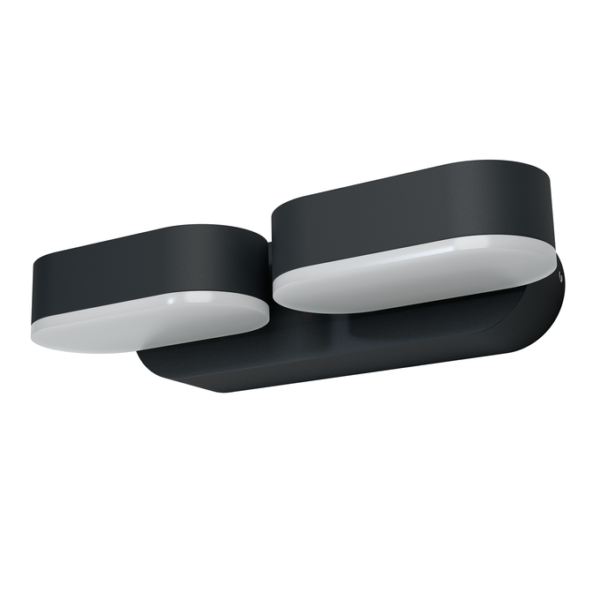

ENDURA Style Mini Spot II 13.5W Dark Grey

ENDURA Style Mini Spot II 13.5W Dark Grey

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854461521 Категория:
Product benefits
  • Easy and quick installation
  • Energy-efficient thanks to LED technology
Areas of application
  • Outdoor use (IP44)
  • Building facades
  • Entrance lighting
  • Patios, balconies
Product features
  • Bright and functional outdoor LED luminaires
  • Die-cast aluminum housing
  • Available in two housing colors
  • Adjustable modules: rotation angle 340°
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854461521
Nominal wattage

13.50 W
Nominal voltage

220…240 V
Luminous flux

630 lm
Luminous efficacy

48 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG0
Height

54.00 mm
Product weight

750.00 g
Product color

Dark grey
Housing color

Dark grey
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+85 °C
Type of connection

Screw terminal
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Protection class

I
Mercury content

0.0 mg
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

> 0.5
Total harmonic distortion

≤ 20 %
Operating mode

Mains voltage
Total luminous flux of contained light sources

720 lm
Max. number of luminaires per miniature circuit breaker B16

100
Max. number of luminaires per miniature circuit breaker C16

278
Protection class IK (shock resistance)

IK05
Length

100.00 mm
Width

230.00 mm
Application environment

Outdoor
Number of illuminants

empty
UGR

< 25
