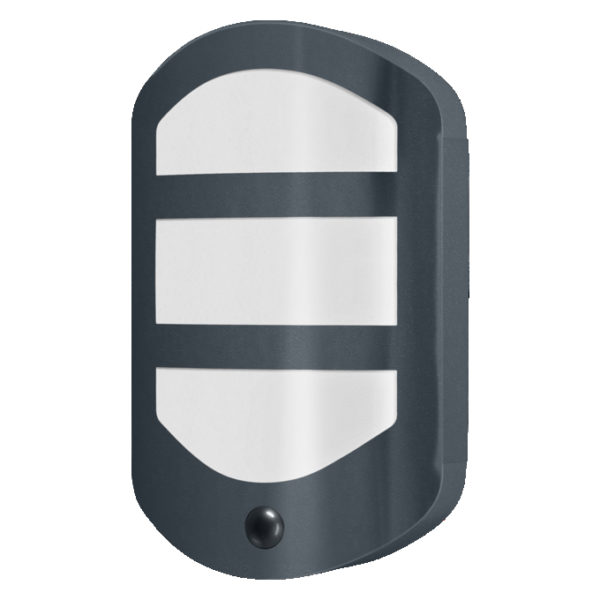

ENDURA Style Plate Wall Sensor 12.5W Dark Grey

ENDURA Style Plate Wall Sensor 12.5W Dark Grey

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854510151 Категория:
Product benefits
  • Easy and quick installation
  • Energy-efficient thanks to LED technology
Areas of application
  • Building facades
  • Entrance lighting
  • Patios, balconies
Product features
  • Bright and functional outdoor LED luminaires
  • Available with and without motion sensor
  • Stainless steel housing
  • Type of protection: IP44
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854510151
Nominal wattage

12.50 W
Nominal voltage

220…240 V
Nominal current

65.000 mA
Luminous flux

630 lm
Luminous efficacy

48 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

≥80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

108 °
Height

283.00 mm
Product weight

720.00 g
Product color

Dark grey
Housing color

Dark grey
Body material

Stainless steel
Ambient temperature range

-20…+40 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

25000 h 1)
Number of switching cycles

12500
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Wall
Protection class

II
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Mains frequency

50…60 Hz
Power factor λ

≥0.5
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

1500 lm
Max. number of luminaires per miniature circuit breaker B16

40
Max. number of luminaires per miniature circuit breaker C10

40
Max. number of luminaires per miniature circuit breaker C16

70
Length

60.00 mm
Width

180.00 mm
Application environment

Outdoor
Type of sensor

Lig
Sensor technology

Passive infrared (PIR)
Sensor detection angle

100 °
Detection range of motion sensor

5…8 m
Detection threshold of daylight sensor

10…2000 lx
Sensor controlled switching time

10 s…4 min
