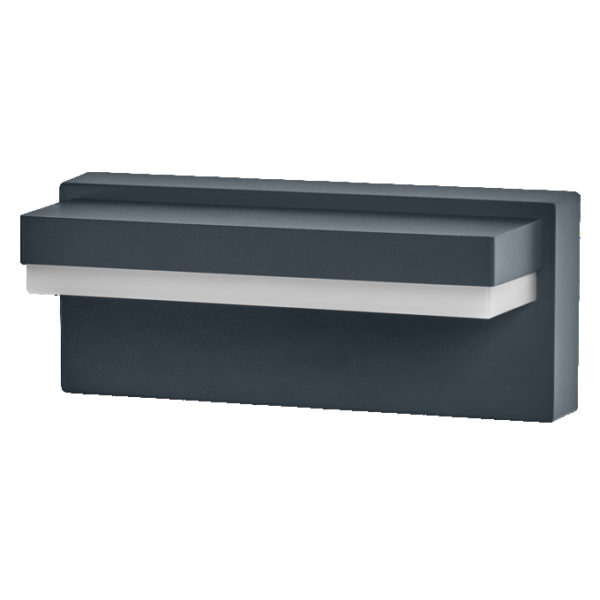

Endura Style Robust Wal IP54 Dark Grey

Endura Style Robust Wal IP54 Dark Grey

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854415739 Категория:
Product benefits
  • Option with PIR motion detection and daylight sensor, matching with housing color available
  • Energy-efficient thanks to LED technology
  • Long-term energy and cost savings (sensor version)
Areas of application
  • Outdoor
  • Entrance lighting
  • Patios, balconies
  • General illumination
  • Facade and building illumination
Product features
  • Robust technical design
  • Type of protection: IP54
  • Housing material: aluminum
  • Diffuser made of opal polycarbonate
  • Easy and quick installation
  • Lower light smog, on-demand lighting (sensor version)
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854415739
Nominal wattage

12.00 W
Nominal voltage

220…240 V
Nominal current

65.000 mA
Luminous flux

1000 lm
Luminous efficacy

83 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Flickering metric (Pst LM)

≤1 %
Stroboscope effect metric (SVM)

≤0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

90 °
Height

86.00 mm
Product weight

580.00 g
Product color

Dark grey
Housing color

Dark grey
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP54
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Protection class

I
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

0.068 A
Power factor λ

> 0.80
Total harmonic distortion

≤ 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

1450 lm
Max. number of luminaires per miniature circuit breaker B16

100
Max. number of luminaires per miniature circuit breaker C10

110
Max. number of luminaires per miniature circuit breaker C16

200
Protection class IK (shock resistance)

IK06
Length

206.00 mm
Width

88.00 mm
Application environment

Outdoor
