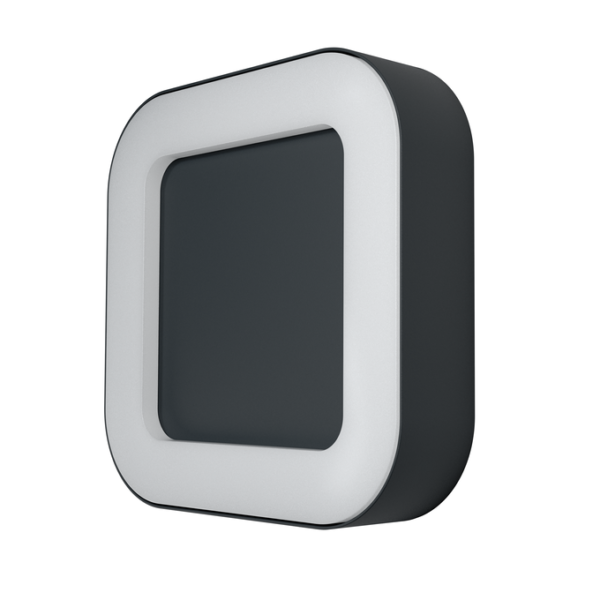

ENDURA Style Square 13.5W Dark Gray

ENDURA Style Square 13.5W Dark Gray

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075205253 Категория:
Product benefits
  • Energy-efficient thanks to LED technology
  • Easy and quick installation
Areas of application
  • Outdoor use (IP54)
  • Building facades
  • Patios, balconies
Product features
  • Bright and functional outdoor LED luminaires
  • Die-cast aluminum housing
  • Available in two housing colors
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4058075205253
Nominal wattage

13.50 W
Nominal voltage

220…240 V
Luminous flux

480 lm
Luminous efficacy

37 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

≤6 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Photobiological safety group acc. to EN62778

RG0
Beam angle

100 °
Height

45.00 mm
Product weight

900.00 g
Product color

Dark grey
Housing color

Dark grey
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+85 °C
Type of connection

Screw terminal
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Replaceable light source

No
Mounting type

Surface
Mounting location

Wall
Protection class

I
Mercury content

0.0 mg
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

> 0.5
Total harmonic distortion

≤ 20 %
Operating mode

Mains voltage
Total luminous flux of contained light sources

1450 lm
Max. number of luminaires per miniature circuit breaker B16

100
Max. number of luminaires per miniature circuit breaker C16

200
Protection class IK (shock resistance)

IK07
Length

202.00 mm
Width

202.00 mm
Application environment

Outdoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Number of illuminants

empty
UGR

< 25
