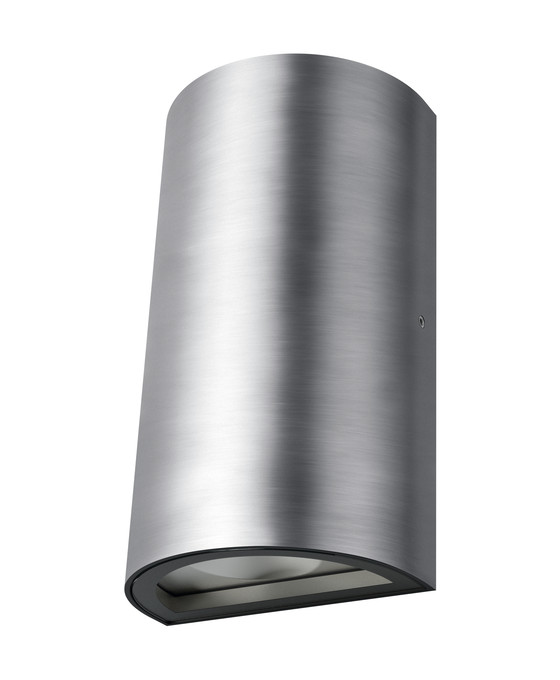

ENDURA Style UpDown 12W Aluminium

ENDURA Style UpDown 12W Aluminium

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854453618 Категория:
Product benefits
  • Energy-efficient thanks to LED technology
  • Easy and quick installation
Areas of application
  • Outdoor use (IP44)
  • Building facades
  • Decorative illumination
Product features
  • Very bright and functional outdoor LED luminaires
  • Die-cast aluminum housing
  • Available in two housing colors
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854453618
Nominal wattage

12.00 W
Nominal voltage

220…240 V
Nominal current

60.000 mA
Luminous flux

700 lm
Luminous efficacy

58 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

≥80
Standard deviation of color matching

≤6 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

100 °
Height

160.00 mm
Product weight

480.00 g
Product color

Aluminum
Housing color

Aluminum
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP54
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Wall
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Glass
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

> 0.5
Total harmonic distortion

≤ 70 %
Operating mode

Mains voltage
Total luminous flux of contained light sources

1050 lm
Max. number of luminaires per miniature circuit breaker B16

26
Max. number of luminaires per miniature circuit breaker C10

22
Max. number of luminaires per miniature circuit breaker C16

35
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Length

55.00 mm
Width

90.00 mm
Application environment

Outdoor
