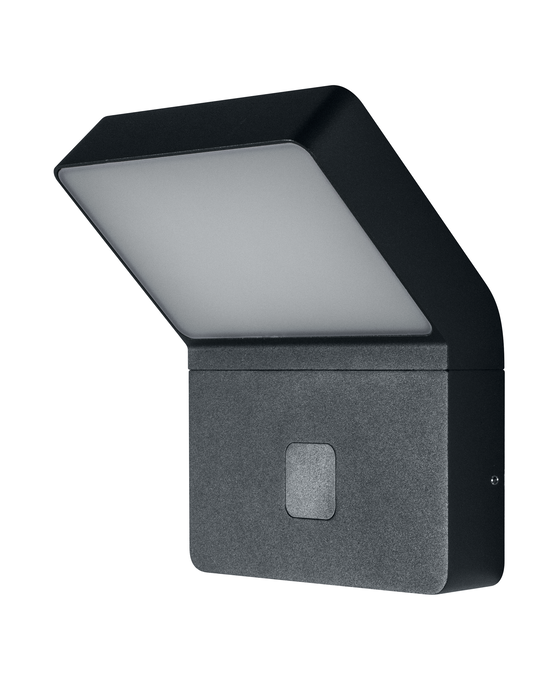

ENDURA Style Wall Wide Sensor 12W Dark Grey

ENDURA Style Wall Wide Sensor 12W Dark Grey

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854453977 Категория:
Product benefits
  • Easy and quick installation
  • Energy-efficient thanks to LED technology
Areas of application
  • Outdoor use (IP44)
  • Building facades
  • Entrance lighting
  • Patios, balconies
Product features
  • Bright and functional outdoor LED luminaires
  • Integrated light and motion sensor
  • Die-cast aluminum housing
  • Available in two housing colors
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854453977
Nominal wattage

11.50 W
Nominal voltage

220…240 V
Nominal current

65.000 mA
Luminous flux

750 lm
Luminous efficacy

65 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

≥80
Standard deviation of color matching

≤6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

106 °
Height

212.00 mm
Product weight

1300.00 g
Product color

Dark grey
Housing color

Dark grey
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-35…+70 °C
Type of connection

Screw terminal
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Protection class

I
Mercury content

0.0 mg
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

> 0.5
Total harmonic distortion

≤ 70 %
Operating mode

Electronic control gear (ECG)
Total luminous flux of contained light sources

900 lm
Max. number of luminaires per miniature circuit breaker B16

20
Max. number of luminaires per miniature circuit breaker C10

17
Max. number of luminaires per miniature circuit breaker C16

28
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Length

118.00 mm
Width

176.00 mm
Application environment

Outdoor
Type of sensor

Lig
Sensor technology

Microwave
Sensor detection angle

120 °
