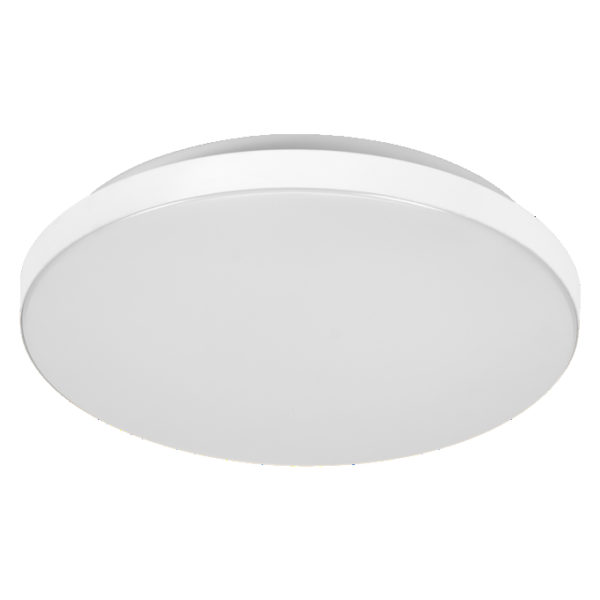

Essential Orbis IP44 220mm 12W 830 White

Essential Orbis IP44 220mm 12W 830 White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854621444 Категория:
Product benefits
  • Long lifetime thanks to LED technology
  • Excellent price/performance ratio
Areas of application
  • Bathrooms
  • Workshops, garages, covered outdoor storage areas
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Type of protection: IP44
  • Lifetime up to 30,000 h
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854621444
Nominal wattage

12.00 W
Nominal voltage

220…240 V
Nominal current

110.000 mA
Luminous flux

800 lm
Luminous efficacy

67 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

50.00 mm
Product weight

350.00 g
Product color

White
Housing color

White
Body material

Metal
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

215.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Wall
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

0.11 A
Inrush current time Th50

196 µs
Power factor λ

0.50
Total harmonic distortion

64 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

1400
Max. number of luminaires per miniature circuit breaker B16

87
Max. number of luminaires per miniature circuit breaker C10

90
Max. number of luminaires per miniature circuit breaker C16

145
Protection class IK (shock resistance)

IK03
