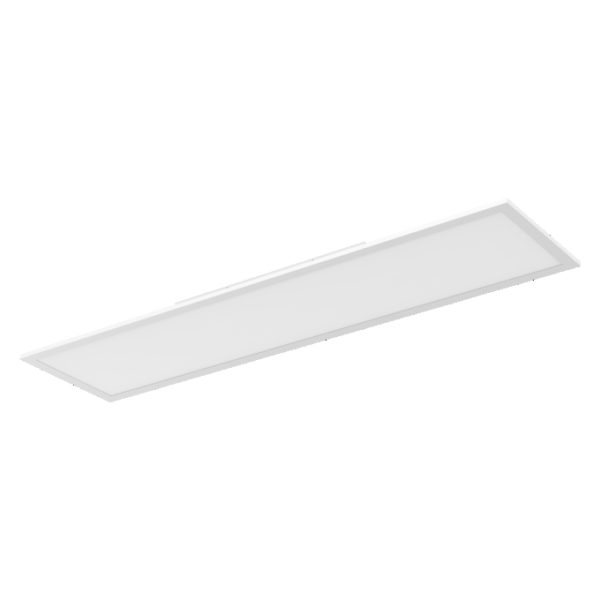

Essential Panel Rectangular 1000x250mm 24W 840 White

Essential Panel Rectangular 1000x250mm 24W 840 White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075854697 Категория:
Product benefits
  • Long lifetime thanks to LED technology
  • Excellent price/performance ratio
Areas of application
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • LED ceiling luminaires with aluminum frame
  • Lifetime up to 25,000 h
  • Type of protection: IP20
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4058075854697
Nominal wattage

24.00 W
Nominal voltage

220…240 V
Nominal current

180 mA
Luminous flux

2500 lm
Luminous efficacy

104 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

250.00 mm
Product weight

1320.00 g
Product color

White
Housing color

White
Body material

Aluminum, Steel
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+70 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

25000 h 1)
Number of switching cycles

12500
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Wa
Protection class

I
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

0.190 A
Inrush current time Th50

380 µs
Power factor λ

> 0.5
Total harmonic distortion

109 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

3200 lm
Max. number of luminaires per miniature circuit breaker B16

24
Max. number of luminaires per miniature circuit breaker C10

24
Max. number of luminaires per miniature circuit breaker C16

38
Protection class IK (shock resistance)

IK03
Length

1000.00 mm
Width

60.00 mm
