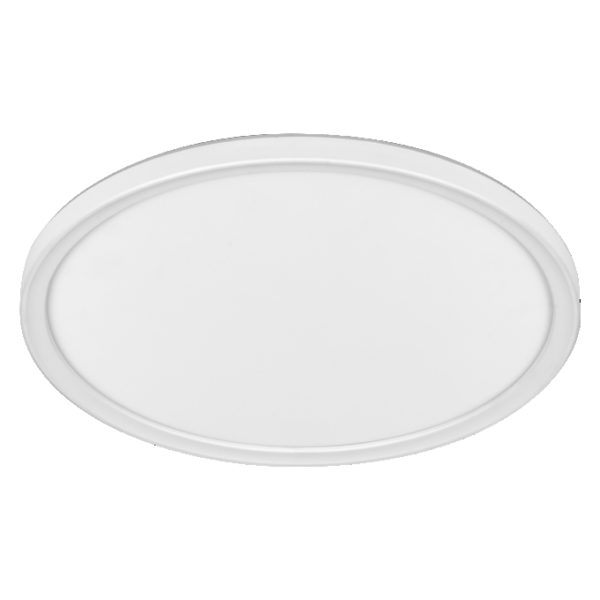

Essential Panel Round 300mm 20W 830 White

Essential Panel Round 300mm 20W 830 White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075854475 Категория:
Product benefits
  • Long lifetime thanks to LED technology
  • Excellent price/performance ratio
  • Easy mounting thanks to included steel hooks on the back
Areas of application
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Durable housing material
  • Color temperature: 3,000 K
  • Lifetime up to 25,000 h
  • Type of protection: IP20
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4058075854475
Nominal wattage

20.00 W
Nominal voltage

220…240 V
Nominal current

135 mA
Luminous flux

1800 lm
Luminous efficacy

90 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

29.00 mm
Product weight

560.00 g
Product color

White
Housing color

White
Body material

Polyprophylene (PP)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+70 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

25000 h 1)
Number of switching cycles

12500
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

293.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Wa
Protection class

II
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polypropylene (PP)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50/60 Hz
Inrush current

0.14 A
Inrush current time Th50

240 µs
Power factor λ

> 0.5
Total harmonic distortion

110 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

2200 lm
Max. number of luminaires per miniature circuit breaker B16

45
Max. number of luminaires per miniature circuit breaker C10

40
Max. number of luminaires per miniature circuit breaker C16

64
Protection class IK (shock resistance)

IK03
