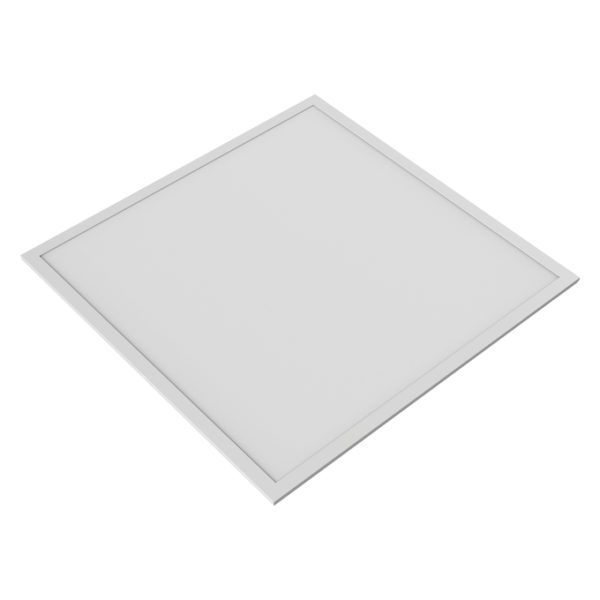

Essential Panel UGR≤19 600x600mm 50W CCT White

Essential Panel UGR≤19 600x600mm 50W CCT White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854649394 Категория:
Product benefits
  • Good glare reduction (UGR ≤ 19)
  • Long lifetime thanks to LED technology
  • Excellent price/performance ratio
  • Highly versatile due to selectable CCT (Multi Color) on the driver
  • 2 in 1 Design: recessed mounting or surface mounting with add-on kit
  • Easy mounting thanks to included steel hooks on the back
Areas of application
  • Indoor
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • LED ceiling luminaires with aluminum frame
  • Lifetime up to 30,000 h
  • TRI CCT (3000K/4000K/6500K)
  • Type of protection: IP20
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854649394
Nominal wattage

50.00 W
Nominal voltage

220…240 V
Nominal current

215.000 mA
Luminous flux

4500 lm
Luminous efficacy

90 lm/W
Color temperature

3000…4000…6500 K
Light color (designation)

Warm Whi
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 °
Height

32.00 mm
Product weight

1655.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-pole
Type of protection

IP20
Dimmable

No
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface/Recessed
Protection class

I
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

0.215 A
Inrush current time Th50

540 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

3000 K
Total luminous flux of contained light sources

5800
Max. number of luminaires per miniature circuit breaker B16

16
Max. number of luminaires per miniature circuit breaker C10

16
Max. number of luminaires per miniature circuit breaker C16

27
Protection class IK (shock resistance)

IK02
Length

595.00 mm
Width

595.00 mm
Mounting width

595 mm
Mounting length

595 mm
Mounting depth

50 mm
UGR

< 19
