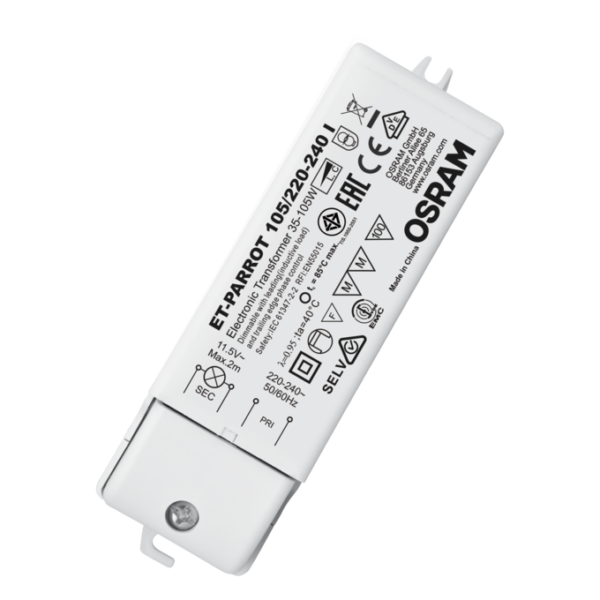

Name: ET-PARROT 105/220…240 I - led-sklad.ru
SKU: 4008321111579
Availability: InStock

Product benefits

Very low power loss thanks to high efficacy
Protective operation throughout the entire partial-load range for long lamp life

Areas of application

Effect and accent lighting
Living rooms
Object lighting
Conference rooms
Restaurants
Recessed and surface-mounted furniture luminaires
Shop lighting
Event rooms

Product features

Line frequency: 50…60 Hz
RI suppression: to EN 55015 (A1: 2007)/CISPR 15, EN 55022
Line harmonics according to EN 61000-3-2
Immunity according to EN 61547
Safety: to EN 61347
Short-circuit protection, overload protection, overtemperature protection: electronically reversible
Electrical isolation between the primary side and the secondary side
Dimmable on the leading edge and trailing edge

GTIN	4008321111579
Nominal wattage	111.00 W
Nominal voltage	220…240 V
Height	31.00 mm
Product weight	130.00 g
Product color	White
Body material	Plastic
Ambient temperature range	0…+40 °C
Temperature range at storage	-40…+85 °C
Type of protection	IP20
Dimmable	Yes
Standards	Acc. to EN 61000-3
Minimum rate of recycled material in packaging	80 % 1)
Minimum percentage of recycled content in the product	0 % 1)
Product recyclability	Mostly recyclable product 1)
Packaging recyclability	Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
Protection class	II
Mains frequency	50/60 Hz 2)
Inrush current	0.5 A
Power factor λ	0.95 3)
Length	128.00 mm
Width	38.00 mm
Type of connection, output side	Screw terminal
Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Maximum temperature at tc test point	85 °C
Operating frequency	40 kHz
Dimming range	0…100 %
Input voltage range	220…240 V
Cable cross-section, output side	0.75 mm²
Permitted rel. humidity during operation	5…85 % 1)
Approval marks – approval	C-Ti
Cable cross-section, input side	0.75 mm²
Wire preparation length, input side	12
Mounting hole spacing, length	119,0 mm
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
Wire preparation length, output side	12
Max. cable length to lamp/LED module	2,0 m
Nominal output voltage	11.5 V 1)
Input voltage AC	198…264 V
ECG efficiency	95 % 4)
Device power loss	6 W 5)
Casing material	Plastic
Max.housing temperature in case of fault	110 °C
Encapsulated	No
Suitable for fixtures with prot. class	II
Max. ECG no. on circuit breaker 10 A (B)	23
Max. ECG no. on circuit breaker 16 A (B)	38
No-load proof	Yes
