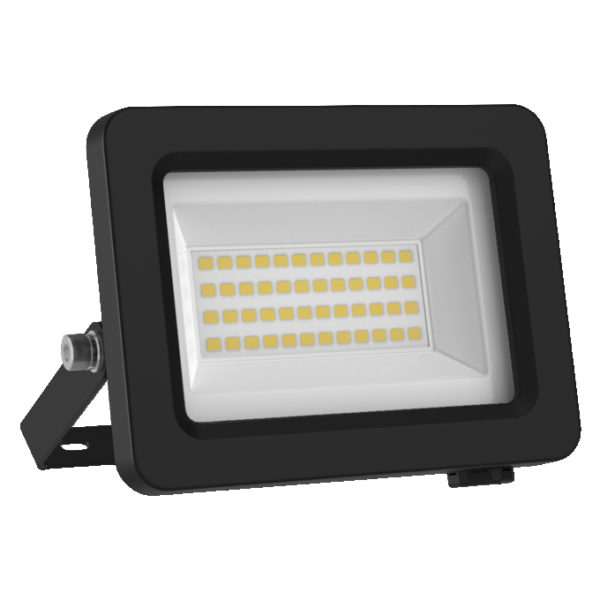

Floodlight EA 10W 840 Dark Grey​

Floodlight EA 10W 840 Dark Grey​

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854429491 Категория:
Product benefits
  • Very low energy consumption
  • Quick and simple installation thanks to low profile, compact and light weight design
Areas of application
  • Outdoor
  • Garages
  • Building facades
Product features
  • Luminous efficacy of light source: up to 210 lm/W
  • Very bright and functional outdoor LED luminaires
  • Type of protection: IP65
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4099854429491
Nominal wattage

10.00 W
Nominal voltage

220…240 V
Nominal current

76.000 mA
Luminous flux

1750 lm
Luminous efficacy

175 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

95 °
Height

123.00 mm
Product weight

371.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Cable, 3-pole
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Protection class

I
Mercury content

0.0 mg
With light source

Yes
Cover material

Glass
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

85.5 µs
Power factor λ

≥0.5
Total harmonic distortion

≤ 140 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

2100 lm
Max. number of luminaires per miniature circuit breaker B16

72
Max. number of luminaires per miniature circuit breaker C10

57
Max. number of luminaires per miniature circuit breaker C16

92
Protection class IK (shock resistance)

IK06
Length

128.00 mm
Width

32.00 mm
Application environment

Outdoor
Number of illuminants

empty
Cable length

1000 mm
Adjustable

Yes
