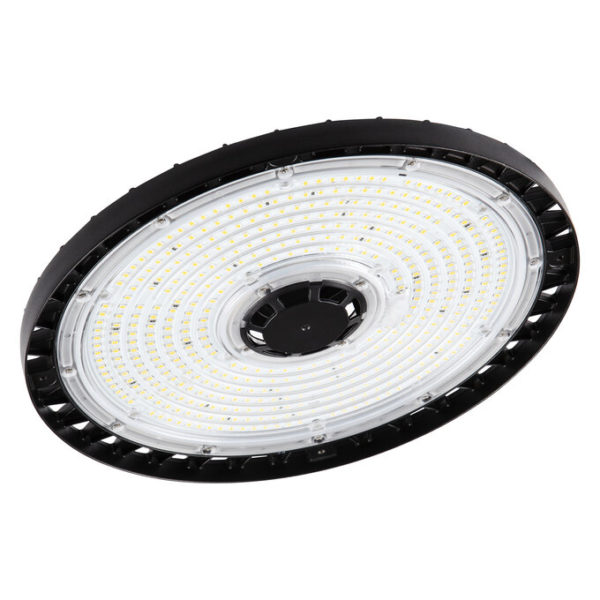

HB 155 W 4000 K 110DEG IP65

HB 155 W 4000 K 110DEG IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075452381 Категория:
Product benefits
  • Improved UGR compared to previous generations, down to UGR ≤ 22 in combination with reflector
  • High luminous efficacy
  • Energy savings of up to 60 % compared to conventional high bay luminaires
  • 5 years guarantee
  • Optimized weight and size due to compact design
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Different luminous flux and beam angle for mounting heights of ~ 6 m to 14 m in 4000 K or 6500 K
Equipment / Accessories
  • Mounting hook included
  • Mounting brackets, reflectors and refractors available as separate accessory
References / Links
  • For Guarantee see
GTIN

4058075452381
Nominal wattage

155.00 W
Nominal voltage

220…240 V
Nominal current

710 mA
Luminous flux

22000 lm
Luminous efficacy

140 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

< 5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 °
Height

140.00 mm
Product weight

2300.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-30…+55 °C
Temperature range at storage

-40…+70 °C
Type of connection

Cable, 3-pole
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

80000 h 1)
Number of switching cycles

200000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

321.00 mm
Replaceable light source

No
Mounting type

Suspended/Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

49 A
Inrush current time Th50

368 µs
Power factor λ

> 0.95
Total harmonic distortion

≤ 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

5
Max. number of luminaires per miniature circuit breaker C10

5
Max. number of luminaires per miniature circuit breaker C16

8
Protection class IK (shock resistance)

IK08
Photobiological safety group acc. to EN62471

RG1
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

50000 h 1)
Cable length

1500 mm
Lifespan L90/B10 at 25 °C

35000 h
Low flicker

Yes
ECG - Output ripple current

≤ 10 %
