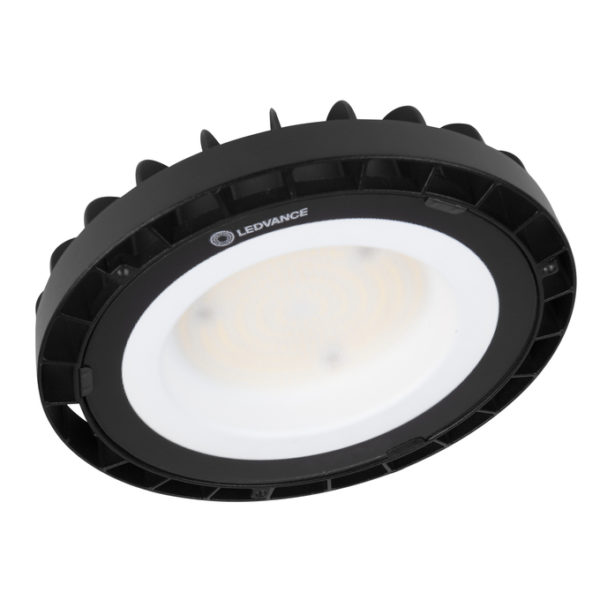

HB COMP V 133W 840 110DEG IP65

HB COMP V 133W 840 110DEG IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075708181 Категория:
Product benefits
  • Modern exclusive design
  • Energy savings of up to 60 % compared to conventional high bay luminaires
  • Optimized weight and size due to compact design
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Operating temperature: -20…45 °C
  • Black aluminum housing, tempered glass cover
  • Opal cover
  • Type of protection: IP65
  • Lifetime (L70): up to 50,000 h
  • High luminous efficacy: up to 120 lm/W
Equipment / Accessories
  • Bracket available
  • Reflector available
References / Links
  • For Guarantee see
GTIN

4058075708181
Nominal wattage

133.00 W
Nominal voltage

220…240 V
Nominal current

580 mA
Luminous flux

16000 lm
Luminous efficacy

120 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

≤5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 °
Height

50.00 mm
Product weight

1100.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+45 °C
Type of connection

Cable, 3-pole
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

> 100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Diameter

220.00 mm
Replaceable light source

No
Mounting type

Post top
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

8.70 A
Inrush current time Th50

19.72 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

850 °C
Max. number of luminaires per miniature circuit breaker B16

22
Max. number of luminaires per miniature circuit breaker C10

13
Max. number of luminaires per miniature circuit breaker C16

22
Protection class IK (shock resistance)

IK06
Application environment

Indoor
Lifespan L80/B10 at 25 °C

45000 h 1)
Cable length

500 mm
Lifespan L90/B10 at 25 °C

30000 h
RAL Color (most similar)

RAL 9017
EPD

LEDV-00040-V01.01-EN
