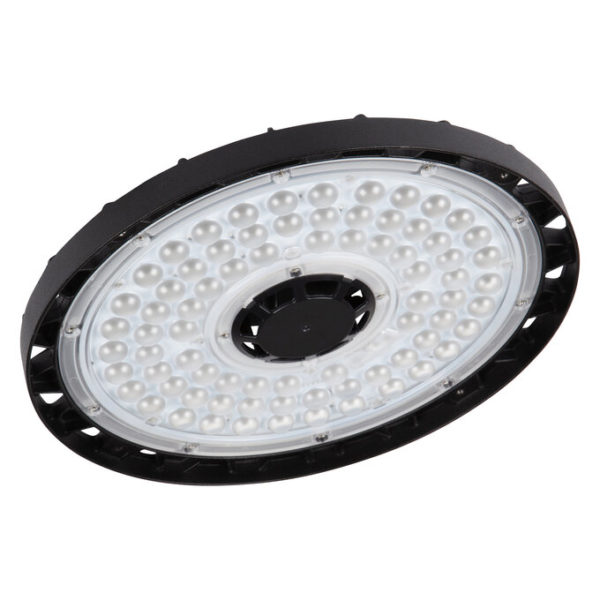

HB DALI 93 W 4000 K 70DEG IP65

HB DALI 93 W 4000 K 70DEG IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075543911 Категория:
Product benefits
  • High compatibility thanks to DALI-2 certification
  • DALI 2.0 interface for dimming and sensor operations
  • Low flicker light thanks to special electronic control gear
  • High luminous efficacy
  • Energy savings of up to 90 % compared to conventional high bay luminaires
  • 5 years guarantee
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Pre-configured DALI driver included
  • Luminous efficacy: up to 140 lm/W
  • Type of protection: IP65
  • Dimming range (DALI): 10…100 %
Equipment / Accessories
  • Mounting hook and brackets included
  • Reflectors and refractors available as separate accessory
References / Links
  • For Guarantee see
GTIN

4058075543911
Nominal wattage

93.00 W
Nominal voltage

100…277 V
Nominal current

420 mA
Luminous flux

13000 lm
Luminous efficacy

140 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

< 5 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

70 °
Height

160.00 mm
Product weight

2818.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-30…+50 °C
Temperature range at storage

-40…+70 °C
Type of connection

2 Cables (2-pole/3-pole)
Type of protection

IP65
Dimmable

Yes
Lifespan L70/B50 at 25 °C

80000 h 1)
Number of switching cycles

200000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

280.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Suspended/Surface
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

41.2 A
Inrush current time Th50

300 µs
Power factor λ

≥0.95
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

5
Max. number of luminaires per miniature circuit breaker C10

5
Max. number of luminaires per miniature circuit breaker C16

8
Protection class IK (shock resistance)

IK08
Type of dimming

DALI
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

50000 h 1)
Adjustable

Yes
Light emitting surface material

Polycarbonate (PC)
UGR

< 25
Lifespan L90/B10 at 25 °C

30000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9017
ECG - Output ripple current

< 10 %
EPD

LEDV-00021-V01.01-EN
