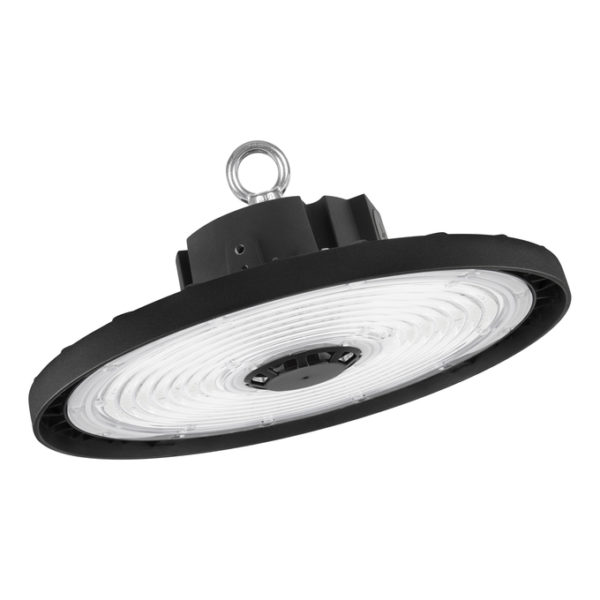

HB P 150W 840 110DEG IP66 PS

HB P 150W 840 110DEG IP66 PS

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075844315 Категория:
Product benefits
  • Highly versatile due to selectable lumen steps (Multi Lumen) on the housing
  • Improved UGR compared to previous generations, down to UGR ≤ 19 (<150W, 70°) in combination with reflector
  • High luminous efficacy
  • Energy savings of up to 70 % compared to conventional high bay luminaires
  • Optimized weight and size due to compact design
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses, logistic halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Multi Lumen function: lumen steps selectable
  • Different luminous flux and beam angle for mounting heights of ~ 6 m to 18 m in 4000 K or 6500 K
  • 0-10 V dimmable
  • Lifetime (L80/B10): up to 100,000 h (at 35 °C)
Equipment / Accessories
  • Mounting hook included
  • Mounting brackets, reflectors and refractors available as separate accessory
References / Links
  • For Guarantee see
GTIN

4058075844315
Nominal wattage

150 W / 125 W
Nominal voltage

220…240 V
Nominal current

665…555 mA
Luminous flux

26700 lm / 22250 lm
Luminous efficacy

178 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

≤4 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 °
Height

160.00 mm
Product weight

2900.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-30…+50 °C
Temperature range at storage

-40…+80 °C
Type of connection

Cable, 3-pole
Type of protection

IP66
Dimmable

Yes
Lifespan L70/B50 at 25 °C

120000 h 1)
Number of switching cycles

200000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Diameter

321.00 mm
Replaceable light source

No
Mounting type

Surface/Suspended
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

16.7 A
Inrush current time Th50

302 µs
Power factor λ

> 0.95
Total harmonic distortion

< 15 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

13
Max. number of luminaires per miniature circuit breaker C10

10
Max. number of luminaires per miniature circuit breaker C16

16
Protection class IK (shock resistance)

IK10
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

100000 h 1)
Cable length

1500 mm
Output current

615 mA
Lifespan L90/B10 at 25 °C

49000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9005
ECG - Output ripple current

< 5 %
EPD

LEDV-00032-V01.01-EN
