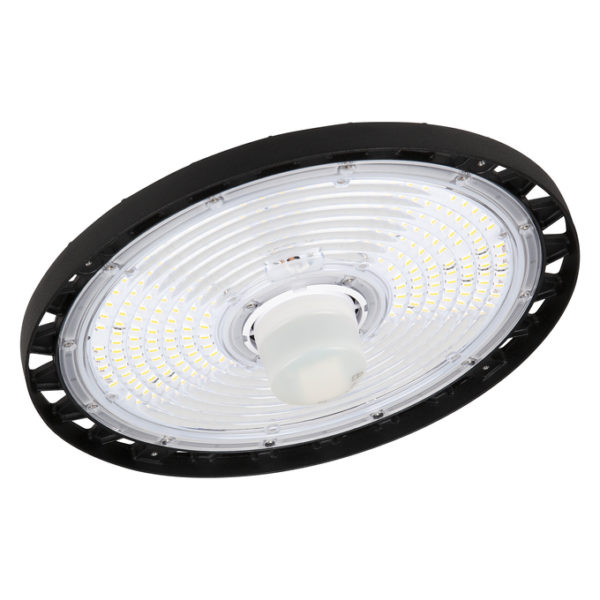

HB SEN P 147W 840 110DEG IP65

HB SEN P 147W 840 110DEG IP65

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075603264 Категория:
Product benefits
  • Multiple adjustments of sensor range, daylight detection and hold time
  • High luminous efficacy
  • Energy savings of up to 64 % compared to conventional high bay luminaires
  • 5 years guarantee
  • Suitable for use in dusty and damp locations thanks to high IP rating
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • High frequency sensor for daylight and motion detection
  • Different luminous flux and beam angle for mounting heights of ~ 6 m to 10 m in 4000 K
Equipment / Accessories
  • Sensor, mounting hook and mounting bracket included
  • Reflectors, refractors and remote control available as separate accessory
References / Links
  • For Guarantee see
GTIN

4058075603264
Nominal wattage

147.00 W
Nominal voltage

220…240 V
Nominal current

660 mA
Luminous flux

22000 lm
Luminous efficacy

150 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

< 5 sdcm
Beam angle

110 °
Height

188.00 mm
Product weight

2570.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+50 °C
Temperature range at storage

-40…+70 °C
Type of connection

Cables
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

80000 h 1)
Number of switching cycles

200000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

321.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Additional info can be provided per individual request
Mounting type

Surface/Suspended
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

48.8 A
Inrush current time Th50

368 µs
Power factor λ

> 0.95
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

4
Max. number of luminaires per miniature circuit breaker C10

4
Max. number of luminaires per miniature circuit breaker C16

6
Protection class IK (shock resistance)

IK08
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

50000 h 1)
Type of sensor

Moti
Sensor technology

Microwave
Sensor detection angle

< 150 °
Detection range of motion sensor

6…15 m
Cable length

1500 mm
Detection threshold of daylight sensor

100 lx
Sensor controlled switching time

30s…10 min
UGR

≤ 29
Lifespan L90/B10 at 25 °C

35000 h
Low flicker

Yes
ECG - Output ripple current

< 10 %
EPD

LEDV-00024-V01.01-EN
