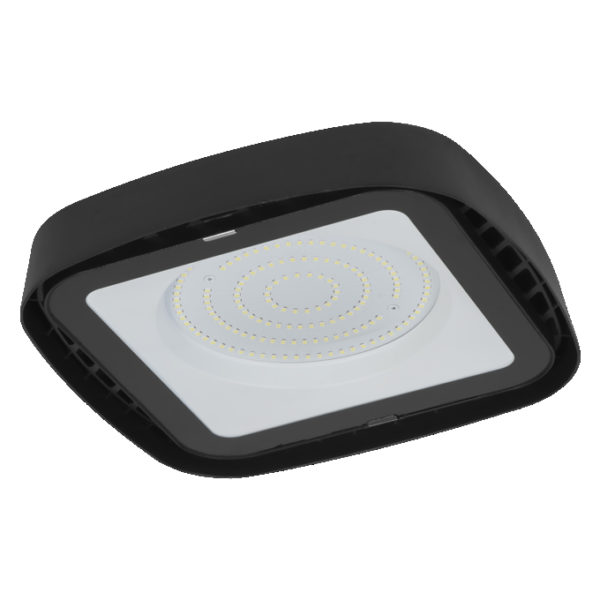

Highbay Ufo 130W 865 IP65 Black

Highbay Ufo 130W 865 IP65 Black

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854429330 Категория:
Product benefits
  • High light output thanks to high-power LED
  • Robust and long-lasting design
  • Suitable for high ceiling installations
Areas of application
  • Garages
  • Areas with high ceilings
Product features
  • Type of protection: IP65
  • Luminous flux up to 15000 lm
Equipment / Accessories
  • Mounting hook included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
GTIN

4099854429330
Nominal wattage

130.00 W
Nominal voltage

220…240 V
Nominal current

558.000 mA
Luminous flux

15000 lm
Luminous efficacy

115 lm/W
Color temperature

6500 K
Light color (designation)

Cool Daylight
Color rendering index Ra

> 70
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 °
Height

83.00 mm
Product weight

1400.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Cable, 3-pole
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

20000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Suspended
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Glass
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current time Th50

1760 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

16500 lm
Max. number of luminaires per miniature circuit breaker B16

14
Max. number of luminaires per miniature circuit breaker C10

14
Max. number of luminaires per miniature circuit breaker C16

22
Protection class IK (shock resistance)

IK05
Length

273.00 mm
Width

273.00 mm
Application environment

Outdoor
