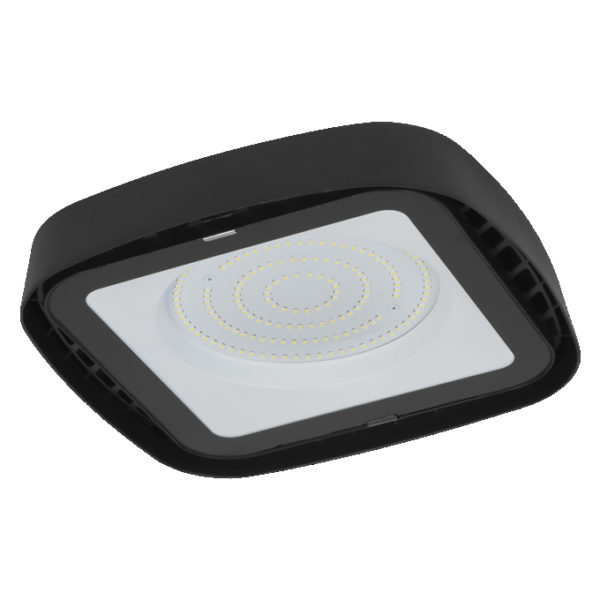

Highbay UFO Sensor 130 W 765 IP65 Black

Highbay UFO Sensor 130 W 765 IP65 Black

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075858473 Категория:
Product benefits
  • E27 Ceiling light with adjustable light-panels
  • Easy installation in E27 lamp holders
  • Perfect match for renovation purposes
  • If turn product off/on 4 times, the sensor function can be ​switched off
Areas of application
  • Renovation
  • Living areas (living rooms, dining rooms, bedrooms etc.)
  • Hallways and staircases
Product features
  • Built-in PIR Motion sensor
  • Type of protection: IP20
Safety advice
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
GTIN

4058075858473
Nominal wattage

130.00 W
Nominal voltage

220…240 V
Nominal current

590.000 mA
Luminous flux

15000 lm
Luminous efficacy

115 lm/W
Color temperature

6500 K
Light color (designation)

Cool Daylight
Color rendering index Ra

> 70
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 °
Height

83.00 mm
Product weight

1420.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-Pole (L, N, PE)
Type of protection

IP65
Dimmable

No
Lifespan L70/B50 at 25 °C

20000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Glass
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

95 A
Inrush current time Th50

68 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

15500 lm
Max. number of luminaires per miniature circuit breaker B16

2
Max. number of luminaires per miniature circuit breaker C10

2
Max. number of luminaires per miniature circuit breaker C16

4
Protection class IK (shock resistance)

IK05
Length

273.00 mm
Width

273.00 mm
Application environment

Outdoor
Type of sensor

Motion
Sensor technology

Microwave
Sensor detection angle

120 °
Detection range of motion sensor

6…10 m
Sensor controlled switching time

30 s
