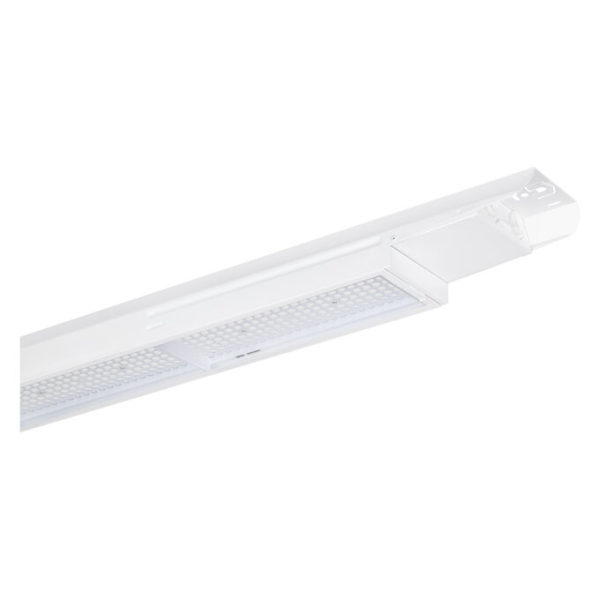

LB FLEX 1200 DALI P 42W 840 OV

LB FLEX 1200 DALI P 42W 840 OV

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854164156 Категория:
Product benefits
  • High compatibility thanks to DALI-2 certification
  • Economical thanks to high luminous efficacy up to 155 lm/W
  • Easy and quick installation thanks to toolless connector box with 5- and 7-pole terminals
  • Modern and robust design
  • 5 years guarantee
Areas of application
  • Replacement for luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industrial and storage facilities
  • Discounters, supermarkets
  • Sports halls
  • Indoor sports facilities
Product features
  • DALI-2 certified
  • Different luminous flux and beam angle for mounting heights of ~ 4 m to ~10 m in 4000 K
  • Through-wiring cable already installed
  • Long Lifetime (L80/B10): up to 100,000 h
  • High color consistency: ≤ 3 SDCM
Equipment / Accessories
  • Suspension kit, ball-proof cover and angulation mounting kit available as separate accessory
References / Links
  • For Guarantee see
GTIN

4099854164156
Nominal wattage

42 W
Nominal voltage

220…240 V
Nominal current

190 mA
Luminous flux

6510 lm
Luminous efficacy

155 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

< 3 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

40 ° x 90 °
Height

65.00 mm
Product weight

3300.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-25…+50 °C
Temperature range at storage

-20…+80 °C
Type of connection

SCREWLESS TERMINAL, 7-POLE (L1, L2, L3, N, PE, DA, DA)
Type of protection

IP23
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface/Suspended
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

22.4 A
Inrush current time Th50

176 µs
Power factor λ

≥0.90
Total harmonic distortion

≤ 20 %
Operating mode

Electronic control gear (ECG)
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

16
Max. number of luminaires per miniature circuit breaker C10

16
Max. number of luminaires per miniature circuit breaker C16

16
Protection class IK (shock resistance)

IK08
Photobiological safety group acc. to EN62471

RG1
Length

1236.00 mm
Width

115.00 mm
Type of dimming

DALI-2
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

VIVARES
Lifespan L80/B10 at 25 °C

100000 h 1)
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

999 lm
Output current

370 mA
Lifespan L90/B10 at 25 °C

83000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

7.5 W
ECG - Output ripple current

< 10 %
IoT ready

Support of DALI data type PART 251, 252, 253 1)
Recommended control gear

TRIDONIC/LCA 50W 100-400mA one4all lp PRE
