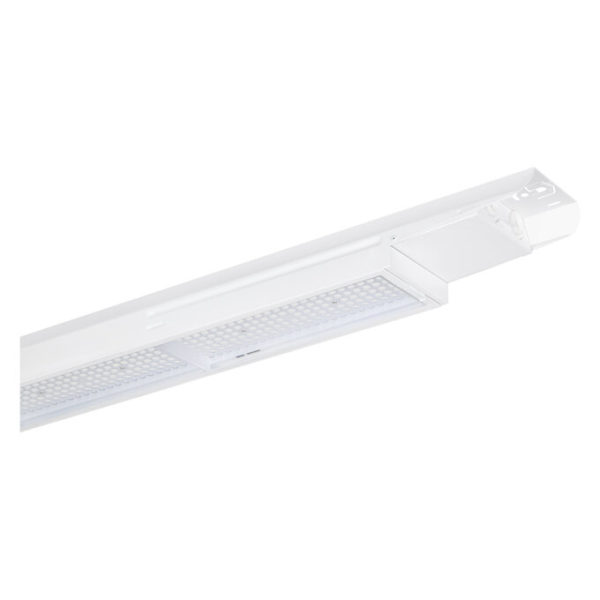

LB FLEX 1200 P 73W 840 W

LB FLEX 1200 P 73W 840 W

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075676107 Категория:
Product benefits
  • Economical thanks to high luminous efficacy up to 155 lm/W
  • Easy and quick installation thanks to toolless connector box with 5- and 7-pole terminals
  • Modern and robust design
  • 5 years guarantee
Areas of application
  • Replacement for luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industrial and storage facilities
  • Discounters, supermarkets
  • Sports halls
  • Indoor sports facilities
Product features
  • Different luminous flux and beam angle for mounting heights of ~ 4 m to ~10 m in 4000 K
  • Through-wiring cable already installed
  • Long Lifetime (L80/B10): up to 100,000 h
  • High color consistency: ≤ 3 SDCM
Equipment / Accessories
  • Suspension kit, ball-proof cover and angulation mounting kit available as separate accessory
References / Links
  • For Guarantee see
GTIN

4058075676107
Nominal wattage

73 W
Nominal voltage

220…240 V
Nominal current

320 mA
Luminous flux

11315 lm
Luminous efficacy

155 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

< 3 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

90 °
Height

65.00 mm
Product weight

3400.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-25…+50 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal
Type of protection

IP23
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Replaceable light source

No
Mounting type

Surface/Suspended
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

25.24 A
Inrush current time Th50

436 µs
Power factor λ

≥0.90
Total harmonic distortion

≤ 20 %
Operating mode

Electronic control gear (ECG)
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

13
Max. number of luminaires per miniature circuit breaker C10

13
Max. number of luminaires per miniature circuit breaker C16

22
Protection class IK (shock resistance)

IK08
Photobiological safety group acc. to EN62471

RG1
Length

1236 mm
Width

115.00 mm
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

100000 h 1)
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Output current

310 mA
Lifespan L90/B10 at 25 °C

83000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
ECG - Output ripple current

< 10 %
EPD

LEDV-00020-V01.01-EN
