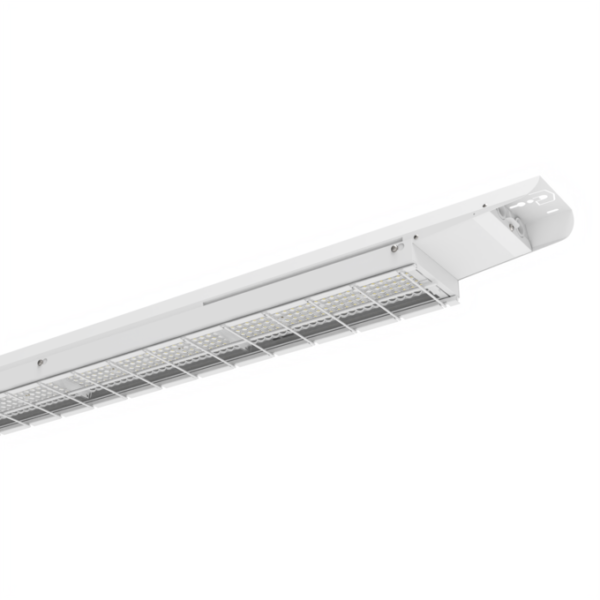

LB FLEX BP DALI 1500 P 105W 840 W

LB FLEX BP DALI 1500 P 105W 840 W

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075676381 Категория:
Product benefits
  • Ball-proof luminaire with increased physical robustness (according to DIN 18032-3 and DIN 57710-13)
  • Economical thanks to high luminous efficacy up to 155 lm/W
  • Easy and quick installation thanks to toolless connector box with 5- and 7-pole terminals
  • Modern and robust design
  • 5 years guarantee
Areas of application
  • Sports halls
  • Indoor sports facilities
Product features
  • Ball-proof Low-bay luminaires for mounting heights up to ~10 m in 4000 K
  • Through-wiring cable already installed
  • Long Lifetime (L80/B10): up to 100,000 h
  • High color consistency: ≤ 3 SDCM
References / Links
  • For Guarantee see
GTIN

4058075676381
Nominal wattage

105 W
Nominal voltage

220…240 V
Nominal current

450 mA
Luminous flux

16275 lm
Luminous efficacy

155 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

< 3 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

90 °
Height

76.00 mm
Product weight

5760.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-25…+50 °C
Temperature range at storage

-40…+80 °C
Type of connection

Screwless terminal
Type of protection

IP23
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface/Suspended
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

Yes
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

17.3 A
Inrush current time Th50

164 µs
Power factor λ

≥0.90
Total harmonic distortion

≤ 20 %
Operating mode

Electronic control gear (ECG)
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

27
Max. number of luminaires per miniature circuit breaker C10

17
Max. number of luminaires per miniature circuit breaker C16

28
Protection class IK (shock resistance)

IK08
Photobiological safety group acc. to EN62471

RG1
Length

1527 mm
Width

117.00 mm
Type of dimming

DALI-2
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

VIVARES
Lifespan L80/B10 at 25 °C

100000 h 1)
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

2662 lm
Output current

460 mA
Lifespan L90/B10 at 25 °C

82000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

18.9 W
ECG - Output ripple current

< 10 %
IoT ready

Support of DALI data type PART 251, 252, 253 1)
Recommended control gear

TRIDONIC/LCI 100/200-850/300 o4a sl PRE
