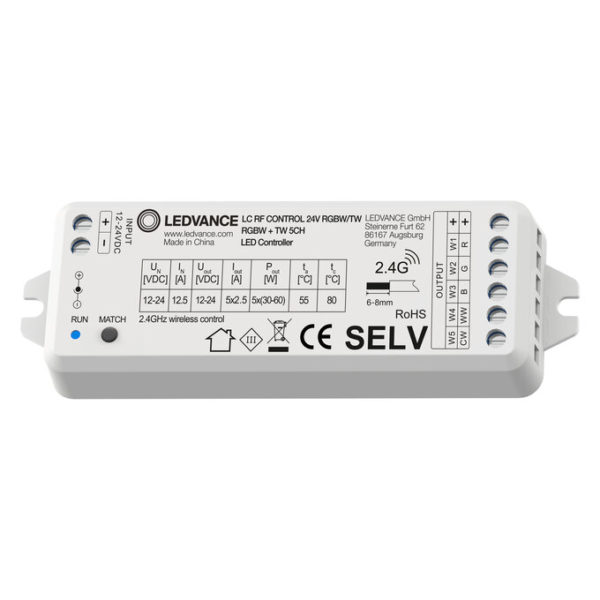

LC RF CONTROL 24V RGBW/TW

LC RF CONTROL 24V RGBW/TW

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075435834 Категория:
Product benefits
  • Control options via radio remote control or radio control unit
  • Dimmable by pulse width modulation (PWM)
  • Simple and quick connection thanks to the MATCH function
  • Dimming curve logarithmic in a range of 0-100% with a dimming level of 4096
Areas of application
  • General illumination
  • Architecture lighting
  • Dynamic light as an architectural effect in public zones
  • Cove lighting
  • Hotels
  • Offices
  • Residential interiors
Product features
  • LED 2.4 GHz master radio receiver
  • 5 channels for RGB, RGBW and Tunable White applications
  • Supply voltage: 12 V and 24 V
  • High performance per channel up to 60 W with 12-24 V power supply
Safety advice
  • All electrical connections must be made by a qualified person.
  • Disconnect mains before installation.
GTIN

4058075435834
Nominal wattage

300.00 W
Nominal voltage

12…24 V
Height

20.00 mm
Product weight

65.00 g
Product color

White
Body material

Plastic
Ambient temperature range

-30…+55 °C
Temperature range at storage

-30…+55 °C
Type of protection

IP20
Dimmable

Yes
Standards

Acc. to EN 3003
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Protection class

III
Mains frequency

0 Hz
Length

114.00 mm
Width

38.00 mm
Type of connection, output side

Constant pressure
Quantity of precious metals

0 mg
Quantity of rare earths

0 mg
Type of current

DC
Maximum temperature at tc test point

80 °C
Operating frequency

2.4 GHz
Dimming range

0…100 %
Nominal output current

5*2.5 A
Overheating protection

Yes
Overload protection

No
Nominal output power

300 W
Nominal output voltage

12…24 V
Power loss in stand-by mode

0.4
Casing material

Fireproof PC
Transmitter range

30 m
Number of control outputs

5
