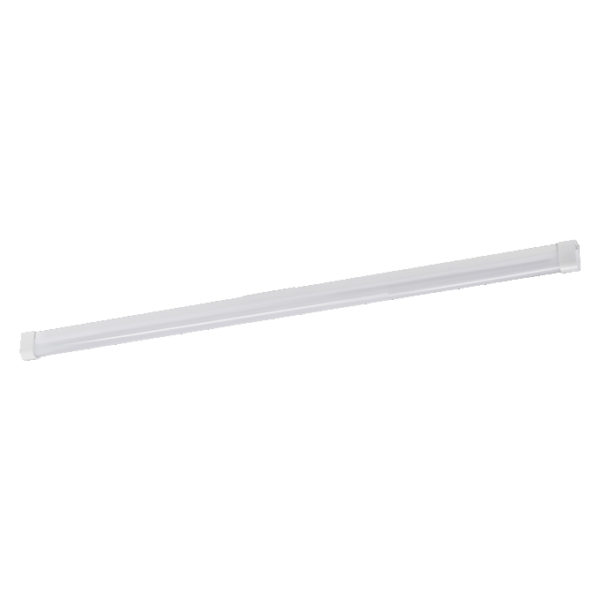

LED Batten 120cm 16W 840 G13 T8

LED Batten 120cm 16W 840 G13 T8

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854609107 Категория:
Product benefits
  • Very sustainable thanks to replaceable LED tube
  • Cover ensures uniform light distribution
  • Handy switch directly installed on the luminaire
  • Flexible application due to a wide range of available lengths of 600 mm to 1500 mm
Areas of application
  • Indoor applications
  • Ceiling and wall surface mounting
  • Kitchens, workspaces
  • Corridors, stairwells, basements
  • General indoor illumination
  • Workshops
Product features
  • Replacement for traditional T8 luminaires
  • Wall and ceiling batten luminaire
  • Lengths available: 0.6 m, 1.2 m, 1.5 m
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854609107
Nominal wattage

16.00 W
Nominal voltage

220…240 V
Nominal current

130.000 mA
Luminous flux

1500 lm
Luminous efficacy

93.8 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

< 6 sdcm
Flickering metric (Pst LM)

< 5 %
Stroboscope effect metric (SVM)

0,4
Photobiological safety group acc. to EN62778

RG0
Height

55.00 mm
Product weight

600.00 g
Product color

White
Housing color

White
Body material

Metal
Ambient temperature range

-20…+40 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Ceiling
Protection class

II
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

0.125 A
Inrush current time Th50

1.1 µs
Power factor λ

> 0.5
Total harmonic distortion

150 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

1800 lm
Max. number of luminaires per miniature circuit breaker B16

60
Max. number of luminaires per miniature circuit breaker C10

48
Max. number of luminaires per miniature circuit breaker C16

76
Length

1230.00 mm
Width

34.00 mm
Holder designation

G13
