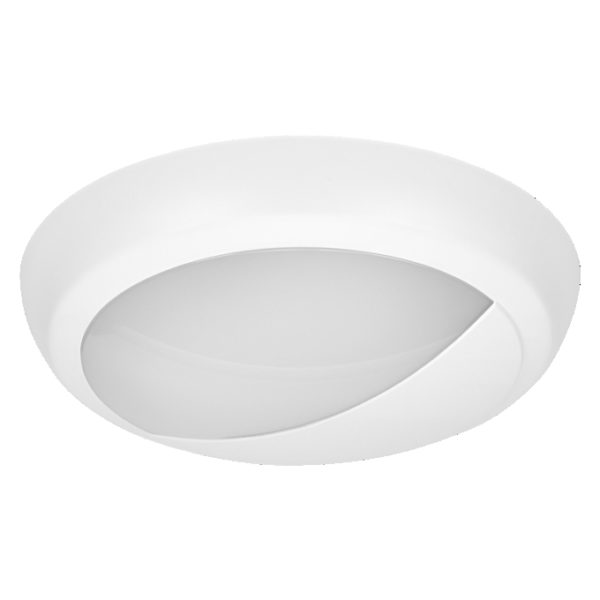

LED Bulkhead Core Eyelid 16W 840 White

LED Bulkhead Core Eyelid 16W 840 White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854690327 Категория:
Product benefits
  • Energy-efficient thanks to LED technology
  • Thanks to protection class IP54, the luminaire is splash-proof and protected against dust
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Easy and quick installation
Areas of application
  • Basements, garages, warehouses
  • Entrance areas
  • Outdoor
Product features
  • Bright and functional indoor and outdoor LED luminaire
  • Type of protection: IP65
  • Impact resistance: IK10
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854690327
Nominal wattage

16.00 W
Nominal voltage

220…240 V
Nominal current

90.000 mA
Luminous flux

1400 lm
Luminous efficacy

62 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

90.00 mm
Product weight

720.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

54000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

325.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Wa
Protection class

II
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

20 A
Inrush current time Th50

150 µs
Power factor λ

> 0.70
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

2350 lm
Max. number of luminaires per miniature circuit breaker B16

30
Max. number of luminaires per miniature circuit breaker C10

24
Max. number of luminaires per miniature circuit breaker C16

38
Protection class IK (shock resistance)

IK10
Application environment

Indoor
