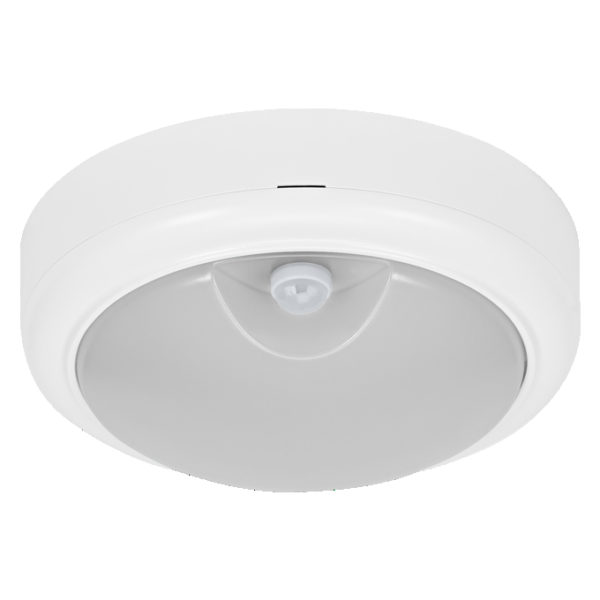

LED Bulkhead Motus Round 15W CCT Sensor White

LED Bulkhead Motus Round 15W CCT Sensor White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854689864 Категория:
Product benefits
  • Energy-efficient thanks to LED technology
  • Thanks to protection class IP54, the luminaire is splash-proof and protected against dust
  • Highly versatile due to selectable CCT (multicolor) on the backside of the luminaire
  • PIR motion sensor with a detection range of up to 7 m
  • Easy and quick installation
Areas of application
  • Basements, garages, warehouses
  • Entrance areas
  • Outdoor
Product features
  • Bright and functional indoor and outdoor LED luminaire
  • Color temperature switch (CCT): 3000 K, 4000 K, 6500 K
  • Type of protection: IP54
  • Impact resistance: IK06
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854689864
Nominal wattage

15.00 W
Nominal voltage

220…240 V
Nominal current

85 mA
Luminous flux

1200 lm
Luminous efficacy

80 lm/W
Color temperature

3000 K / 4000 K / 6500 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

≤6 sdcm
Flickering metric (Pst LM)

≤1
Stroboscope effect metric (SVM)

≤0.4
Photobiological safety group acc. to EN62778

RG1
Height

66.00 mm
Product weight

300.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-10…+35 °C
Temperature range at storage

-40…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP54
Dimmable

No
Lifespan L70/B50 at 25 °C

25000 h 1)
Number of switching cycles

20000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

180.00 mm
Replaceable light source

No
Mounting type

Surface
Mounting location

Wa
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

21.5 A
Inrush current time Th50

10 µs
Power factor λ

> 0.5
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Reference control setting of contained light source (Kelvin)

6500 K
Total luminous flux of contained light sources

1650 lm
Max. number of luminaires per miniature circuit breaker B16

34
Max. number of luminaires per miniature circuit breaker C10

27
Max. number of luminaires per miniature circuit breaker C16

44
Protection class IK (shock resistance)

IK06
Luminous intensity

300
Type of sensor

Daylig
Sensor technology

Passive infrared (PIR)
Sensor detection angle

120 °
Detection range of motion sensor

4…7 m
Number of illuminants

1
Detection threshold of daylight sensor

15…25 lx
Sensor controlled switching time

30 s
Mounting height

1…3 m
