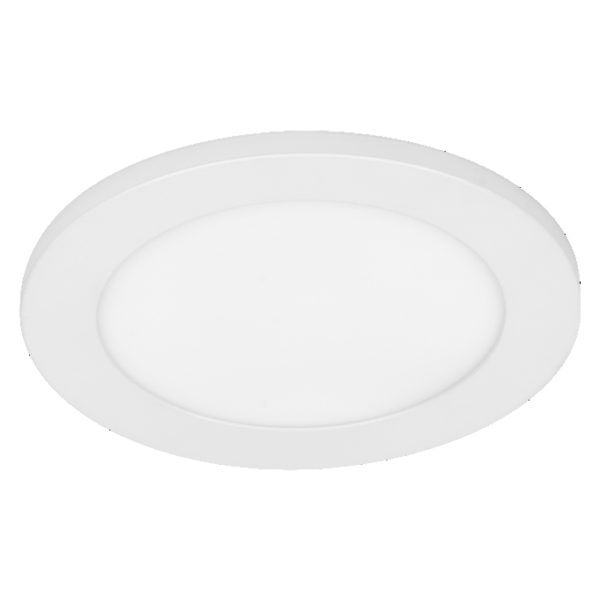

LED Downlight Side-Mainlight 175mm 18W 830 White

LED Downlight Side-Mainlight 175mm 18W 830 White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075853935 Категория:
Product benefits
  • Through-wiring possible with included connector box
  • Easy mounting
Areas of application
  • Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
  • Recessed ceiling mounting
  • Color temperature: 3,000 K
  • Through wiring possible
  • Type of protection: IP20
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4058075853935
Nominal wattage

18.00 W
Nominal voltage

220…240 V
Nominal current

450.000 mA
Luminous flux

1400 lm
Luminous efficacy

77 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

30.00 mm
Product weight

350.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+70 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

No
Number of switching cycles

50000
Standards

CE
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

175.00 mm
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Type of emergency operation test

None
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

> 0.90
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

1400 lm
Max. number of luminaires per miniature circuit breaker B16

23
Max. number of luminaires per miniature circuit breaker C16

23
Mounting diameter

85…145 mm
Mounting depth

30,0 mm
