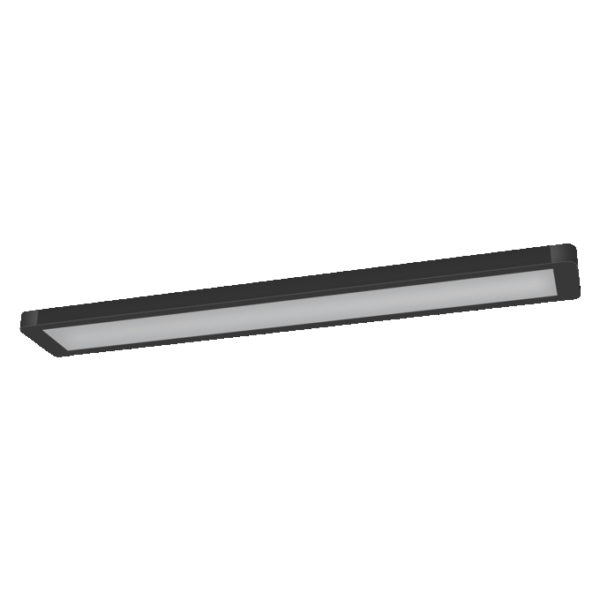

LED Office Line 1.2 m 48 W 840 Black

LED Office Line 1.2 m 48 W 840 Black

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854856150 Категория:
Product benefits
  • Flexible mounting options
  • Functional and minimalistic design
Areas of application
  • Indoor applications
  • Home offices
  • General indoor illumination
  • Kitchens, workspaces
Product features
  • Replacement for traditional T8 luminaires
  • Wall and ceiling batten luminaire
  • Material: Aluminium (Housing), Polycarbonate (Diffuser)
  • Lifetime up to 30,000 h
  • Lengths available: 0.6 m, 1.2 m
  • Color temperature: 4,000 K
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854856150
Nominal wattage

48.00 W
Nominal voltage

220…240 V
Nominal current

220.000 mA
Luminous flux

4800 lm
Luminous efficacy

100 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

< 5 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

28.00 mm
Product weight

1355.00 g
Product color

Black
Housing color

Black
Body material

POLYSTYRENE (PS), ALUMINUM, POLYCARBONATE (PC)
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Polystyrene (PS)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

9.8 A
Inrush current time Th50

400 µs
Power factor λ

> 0.90
Total harmonic distortion

< 20 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

6300
Max. number of luminaires per miniature circuit breaker B16

15
Max. number of luminaires per miniature circuit breaker C10

16
Max. number of luminaires per miniature circuit breaker C16

28
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Length

1215.00 mm
Width

130.00 mm
