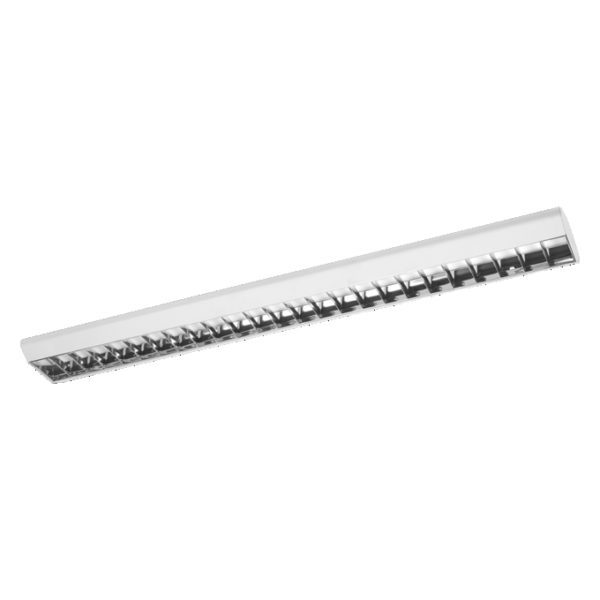

LED Office Line Grid Curve 1.2m DIM 840 White

LED Office Line Grid Curve 1.2m DIM 840 White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854589706 Категория:
Product benefits
  • Flexible mounting options
  • Click-DIM: dimmable in three steps by repeated switching
  • With a UGR value of <19, the luminaire meets the requirements for VDU workstations and reduces eye strain
Areas of application
  • Office lighting
  • Home offices
  • Indoor applications
Product features
  • Traditional design in a new modern look
  • Lifetime up to 50,000 h
  • Color temperature: 4,000 K
  • Luminaire with included louver grid
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
GTIN

4099854589706
Nominal wattage

40.00 W
Nominal voltage

220…240 V
Nominal current

185.000 mA
Luminous flux

4000 lm
Luminous efficacy

100 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

120 °
Height

56.00 mm
Product weight

2370.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 3-pole
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Cover material

Plastic
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

0.174 A
Inrush current time Th50

980 µs
Power factor λ

> 0.90
Total harmonic distortion

< 15 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

6000 lm
Max. number of luminaires per miniature circuit breaker B16

11
Max. number of luminaires per miniature circuit breaker C10

11
Max. number of luminaires per miniature circuit breaker C16

18
Protection class IK (shock resistance)

IK02
Length

1193.00 mm
Width

167.00 mm
UGR

< 19
