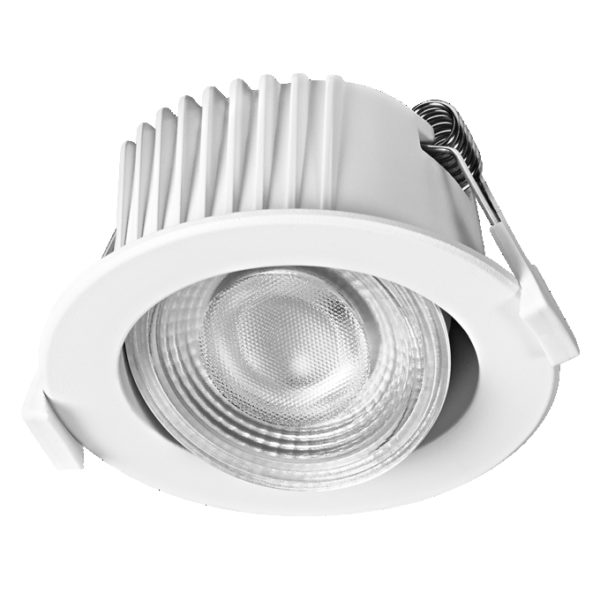

LED Spot Set DIM Recess IP44 Adjustable 4.9W 827 36° White

LED Spot Set DIM Recess IP44 Adjustable 4.9W 827 36° White

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854595943 Категория:
Product benefits
  • Can be rotated and swiveled for optimum illumination
  • Through-wiring possible with included connector box
  • Easy mounting
Areas of application
  • Suitable for outdoor use
  • Bathrooms
  • Workshops, garages, covered outdoor storage areas
Product features
  • Recessed ceiling mounting
  • Dimmable (with suitable Phase-cut dimmers)
  • Adjustable swivel angle
  • With integrated LED module and driver
  • Color temperature: 2,700 K
  • Through wiring possible
  • Type of protection: IP44
Safety advice
  • Luminaire must be disconnected from mains during installation, maintenance and cover removal
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
GTIN

4099854595943
Nominal wattage

4.90 W
Nominal voltage

220…240 V
Nominal current

26.000 mA
Luminous flux

280 lm
Luminous efficacy

57 lm/W
Color temperature

2700 K
Light color (designation)

Warm White
Color rendering index Ra

80
Standard deviation of color matching

6 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

36 °
Height

40.00 mm
Product weight

208.00 g
Product color

White
Housing color

White
Body material

Aluminum, Plastic
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Terminal, 2-Pole (L, N)
Type of protection

IP44/IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

25000 h 1)
Number of switching cycles

15000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

88.00 mm
Replaceable light source

No
Mounting type

Recessed
Mounting location

Ceiling
Protection class

II
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

None
With light source

Yes
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

1.7 A
Power factor λ

0.40
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Total luminous flux of contained light sources

420 lm
Max. number of luminaires per miniature circuit breaker B16

47
Max. number of luminaires per miniature circuit breaker C10

29
Max. number of luminaires per miniature circuit breaker C16

47
Protection class IK (shock resistance)

IK03
Type of dimming

PHASE CUT
Luminous intensity

620 cd
Mounting diameter

68 mm
Mounting depth

80 mm
