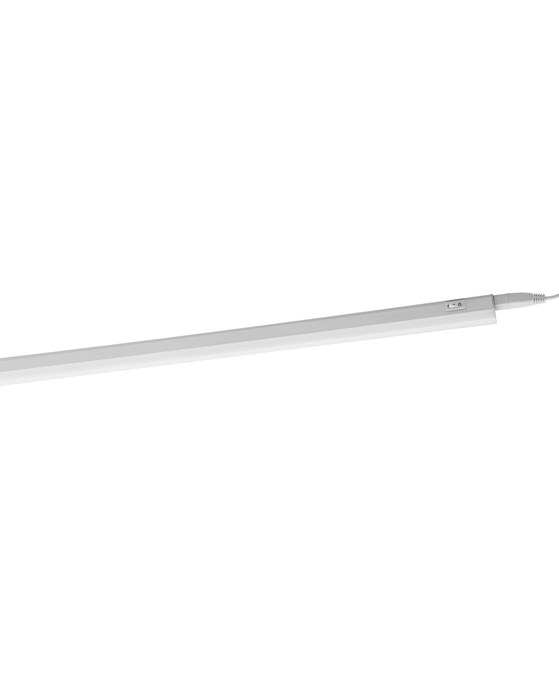

LED Switch Batten 900 mm 10 W 4000 K

LED Switch Batten 900 mm 10 W 4000 K

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854532696 Категория:
Product benefits
  • Little space required thanks to compact dimensions
  • Ready for connection due to integrated on/off switch and cable with EU-plug
  • Easy and quick electrical connection for light line installation
  • Flexible application due to a wide range of available lengths of 300 to 1200 mm.
  • Flexible installation in 2 different angles with 2 different mounting options
Areas of application
  • Indoor applications
  • Under cabinet lighting
  • Accent lighting
  • General indoor illumination
  • Corridors, entrance areas, stairwells, living rooms, basements
  • Cove lighting
Product features
  • Replacement for traditional T8 luminaires
  • On/off switch on luminaire
  • Polycarbonate housing
  • Lifetime up to 30,000 h
  • Color temperature: 3,000 K, 4,000 K
  • High luminous efficacy: up to 115 lm/W
  • Lengths available: 0.3 m, 0.6 m, 0.9 m, 1.2 m
  • Mounting accessories included
Equipment / Accessories
  • Equipped with 1.5 m cable and EU plug
  • Mounting bracket included
  • Fixed connector and flexible connecting cable included
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
GTIN

4099854532696
Nominal wattage

10.00 W
Nominal voltage

220…240 V
Nominal current

75.000 mA
Luminous flux

1100 lm
Luminous efficacy

110 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

155 °
Height

30.00 mm
Product weight

100.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+40 °C
Type of connection

Plug type C (EU)
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Protection class

II
Mercury content

0.0 mg
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Power factor λ

> 0.5
Total harmonic distortion

110 %
Operating mode

Mains voltage
Total luminous flux of contained light sources

1300 lm
Max. number of luminaires per miniature circuit breaker B16

39
Max. number of luminaires per miniature circuit breaker C16

63
Protection class IK (shock resistance)

IK03
Length

873.00 mm
Width

22.00 mm
Application environment

Indoor
Cable length

1500 mm
