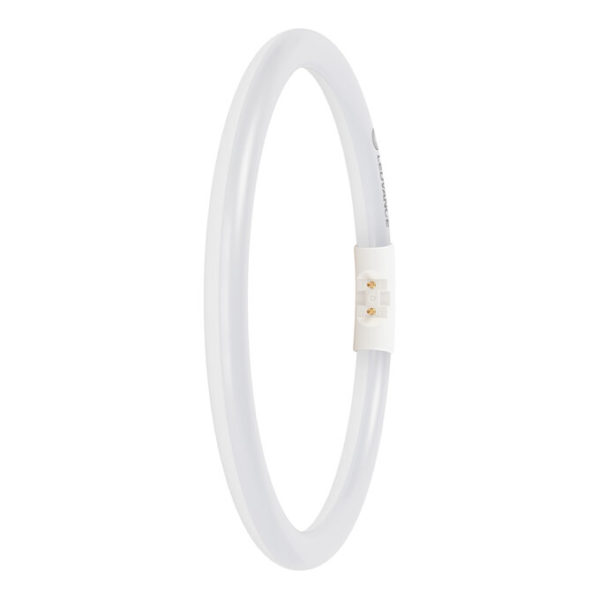

LED T5 FC 22 EXTERNAL 11.6W 865 2GX13

Product benefits

• Compatible with LED driver DR DALI-P -30/220-240/700 and DR DALI-P -42/220-240/1A0 (4058075845367, 4058075845381)
• Simple upgrade to dimmable LED system
• Hassle free application, no ballast compatibility check necessary
• 5 years guarantee

Areas of application

• Shops, hotels and restaurants
• Public buildings

Product features

• Designed to power with LED DRIVER DALI PERFORMANCE
• Single-ended round LED lamp
• Suitable illumination within ambient temperatures from -20…+45 °C
• Lifetime (L70/B50) up to 50,000 h (at 25 °C)
• LED replacement for traditional T5 fluorescent circular lamps

Legal advice

• When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.

Safety advice

• Suitable for indoor applications
• The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
• Not suitable for operation with 230 V line voltage or electronic control gear.
• Disconnect mains before installation.

References / Links

• For current information see www.ledvance.com/ledtube
