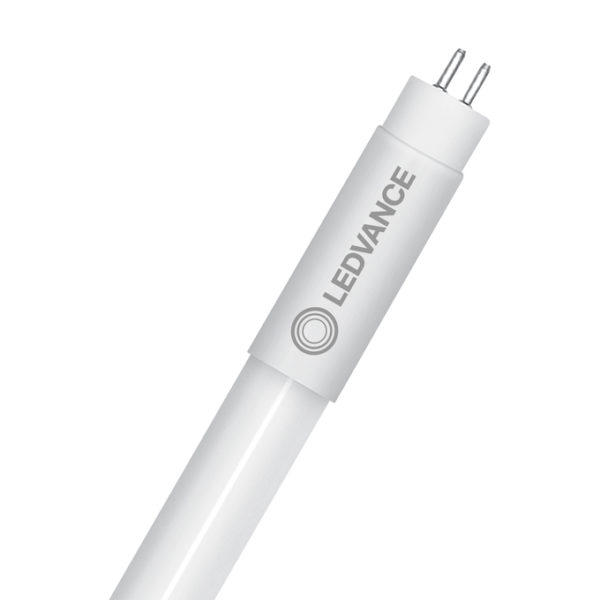

LED TUBE T5 HF L8 SHORT VALUE 288 mm 4W 840

Product benefits

• No bending thanks to glass technology
• Quick, simple and safe replacement without rewiring
• Also suitable for operation at low temperatures
• Please follow all safety advices

Areas of application

• General illumination within ambient temperatures from -20…+45 °C
• Public buildings
• Kitchens
• Under-cabinet lighting

Product features

• Retrofit replacement of existing T5 lamps on HF ballast installations
• Lamp tube made of glass with splinter protection
• High color consistency: ≤ 5 sdcm
• Lifetime up to 30,000 h
• Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
• Type of protection: IP20
• Compatible with many common electronic control gears (see also )

Legal advice

• When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.

Safety advice

• Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
• The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
• Not suitable for emergency lighting.

References / Links

• For current information see www.ledvance.com/ledtube
