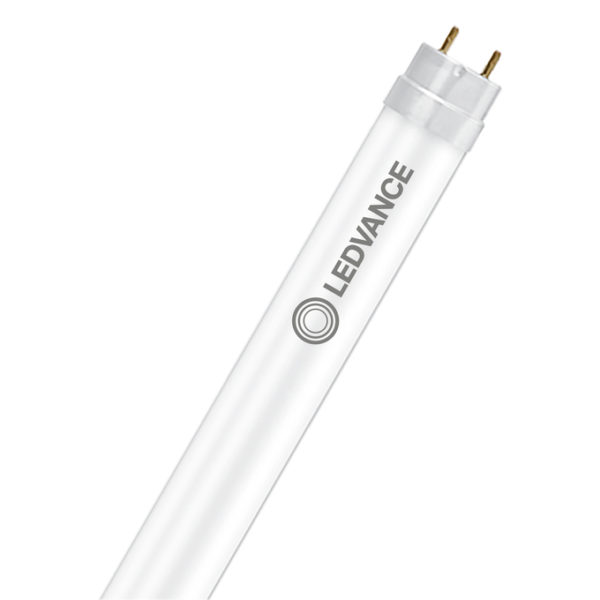

LED TUBE T8 EM CONNECTED ZIGBEE 1500 mm 23W 830

LED TUBE T8 EM CONNECTED ZIGBEE 1500 mm 23W 830

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854577949 Категория:
Product benefits
  • Easy to install and set up via smartphone in minutes
  • No gateway, cloud, or registration required
  • Enhanced energy saving thanks to advanced lighting controls
Areas of application
  • General illumination within ambient temperatures from -20…+50 °C
  • Parking lots, warehouses, production areas
  • Industry
Product features
  • Operates with LEDVANCE CONNECTED SENSOR DIRECT ZB
  • Easy installation and control — with LEDVANCE DIRECT EASY App
  • Compatible with EM (CCG) ballast or direct mains
  • Very long lifetime: up to 75,000 h
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Disconnect mains before installation.
  • Not suitable for emergency lighting.
References / Links
  • For current information see www.ledvance.com/ledtube
GTIN

4099854577949
Nominal wattage

23 W
Nominal voltage

220…240 V
Nominal current

100 mA
Luminous flux

3350 lm
Luminous efficacy

144 lm/W
Color temperature

3000 K
Light color (designation)

Warm White
Color rendering index Ra

80
Standard deviation of color matching

≤5 sdcm
Flickering metric (Pst LM)

1
Stroboscope effect metric (SVM)

0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

190 °
Height

26.70 mm
Product weight

278.00 g
Ambient temperature range

-20…+50 °C 1)
Temperature range at storage

-20…+80 °C
Type of protection

IP20
Dimmable

Yes 1)
Lifespan L70/B50 at 25 °C

75000 h
Number of switching cycles

200000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Diameter

26.70 mm
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mercury content

0.0 mg
Mains frequency

50/60 Hz
Inrush current

20.3 A
Power factor λ

0.90
Total harmonic distortion

< 30 %
Operating mode

CCG, AC Mains
Length

1513.00 mm
Width

26.70 mm
Light color

830
Rated LLMF at 6,000 h

0.90
Overall length

1513.00 mm
Length with base excl. base pins/connection

1500 mm
Rated lamp survival factor at 6,000 h

≥ 0.90
Base (standard designation)

G13
Energy efficiency class

D 1)
Energy consumption

23.00 kWh/1000h
Lighting technology used

LED
Non-directional or directional

NDLS
Mains or non-mains

MLS
Light source cap-type (or other electric interface)

G13
Connected light source (CLS)

No
Color-tuneable light source

No
Envelope

No
High luminance light source

No
Anti-glare shield

No
Correlated colour temperature type

SINGLE_VALUE
Claim of equivalent power

No
Chromaticity coordinate x

0.434
Chromaticity coordinate y

0.403
Beam angle correspondence

SPHERE_360
EPREL ID

2299242
Model number

AC56414
Design / version

Frosted
Starting time

< 0.5 s
Mercury-free

Yes
Type of current

AC
Maximum temperature at tc test point

78 °C
Lumen main.fact.at end of nom.life time

0.96
R9 Colour rendering index

1
Survival factor

0.9
Operating frequency

50/60 Hz
Displacement factor

0.9
Warm-up time (60 %)

‹ 2.00 s
Max. lamp number on MCB B10 A

13
Max. lamp number on MCB B16 A

21
Lumen maintenance at end of service lifetime

0.96
LED light source replaces a fluorescent light source

No
Nominal useful luminous flux 90°

3350 lm
Max. lamp number on MCB B10 A - CCG without compensation

23
Max. lamp number on MCB B10 A - CCG with compensation

14
Max. lamp number on MCB B16 A - CCG without compensation

37
Max. lamp number on MCB B16 A - CCG with compensation

27
Order reference

LEDTUBE T8EM CO
