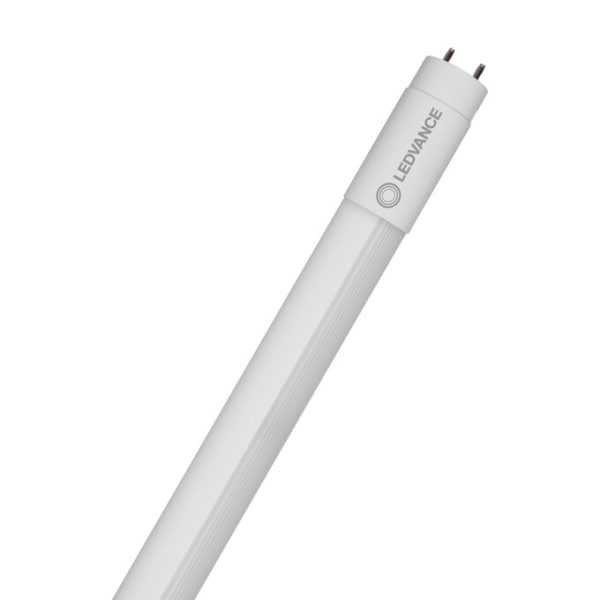

LED TUBE T8 EM HIGHBAY 1200 mm 14W 840

Product benefits

• Very high illuminance level compared to standard LED tubes
• Very high resistance to switching loads
• High luminous flux for sophisticated lighting tasks
• Quick, simple and safe replacement without rewiring
• Energy savings of up to 62 % (compared to T8 fluorescent lamp)
• Instant-on light, therefore ideally suitable in combination with sensor technology
• Also suitable for operation at low temperatures

Areas of application

• General illumination within ambient temperatures from -20…+50 °C
• Storage and (high bay) warehouses
• Illumination of production areas
• Industry

Product features

• LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
• Narrow beam angle: 90°
• Rotatable end caps
• Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
• ENEC 10 VDE mark
• Lifetime up to 75,000 h
• Type of protection: IP20
• Mercury-free and RoHS compliant

Equipment / Accessories

• Replacement starter for LED tubes

Legal advice

• When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.

Safety advice

• Not suitable for operation with electronic control gear.
• Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
• Not suitable for emergency lighting.
• Disconnect mains before installation.

References / Links

• For current information see www.ledvance.com/ledtube
