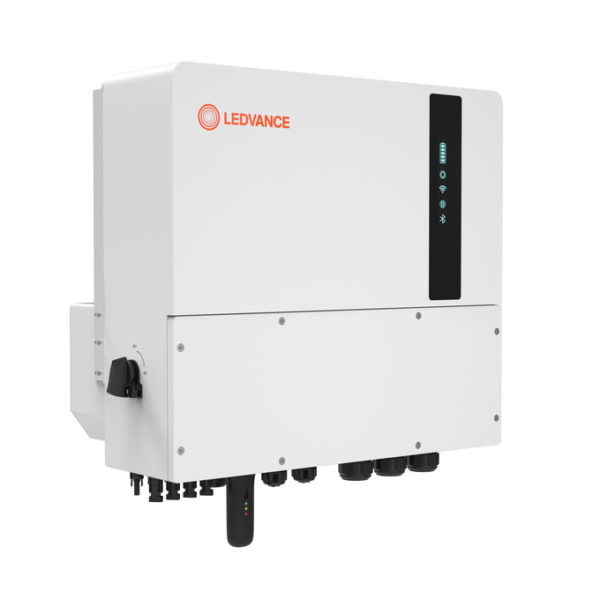

LHT-HV 12K F2

LHT-HV 12K F2

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854438479 Категория:
Product benefits
  • 10 years of product guarantee
  • Compatible with many energy storage systems manufacturers
  • Possible selection of different work modes
  • Inverter is powered by the grid or the battery and is independent of the PV panels
  • Bluetooth connection possible
  • Charge / discharge of the energy storage system is faster than with LV version
  • AFCI protection, proactively reduces fire risk
Areas of application
  • Residential installations
Product features
  • 1 battery input
  • Cooling by natural convection
  • Protection rating: IP66
  • Original Stäubli MC4 connectors
  • Up to 50 A of charging/discharging current
  • UPS level switching time (< 10 ms) supporting critical loads all the time
Equipment / Accessories
  • Mounting bracket included
  • Data logger included
  • AC and AC backup connector included
  • Supplied with user manual
  • Additional DC connectors for the outlets on the inverter
  • Bluetooth antenna included
  • Eastron meter and CT clamps included
  • Power and communication cables for the battery system included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854438479
Height

235 mm
Product weight

31000.000 g
Product color

White
Ambient temperature range

-25…+60 °C
Type of connection

Staubli MC4
Type of protection

IP66
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

2-2Hbenzotriazol, 2-methyl, arsenic acid, barium chromate, Bis peroxide, Boric acid, bumetrizole (uv326), calcium arsenate, diarsenic pentaoxide, diarsenic trioxide, diboron trioxide, dioxobis(stearato), disodium octaborate, Disodium tetraborate, dodecame
Length

563 mm
Width

546 mm
Input voltage DC

600 V
Temperature range in operation

-25…+60 °C
Suitable for emergency power

Yes
Outdoor application

No
Output phases

3-phase
Max. input power DC

19.2 kW
MPP voltage

200-850 V
Max. input current DC

20 A
Max. input current DC per string input

20 A
Max. input current DC per MPP tracker

20 A
Max. short circuit current per MPPT

30 A
Number of independent MPPT inputs

4
String connections per MPPT input

1
Nominal output power AC

12 kW
Integrated DC switch

Yes
Connection DC for battery

Yes
Charging controller integrated

Yes
With data logging

Yes
Wireless

Yes
Display

Standard
Ethernet

Yes
Integrated transformer

No
Maximum efficiency

98,50 %
European efficiency

97,50 %
