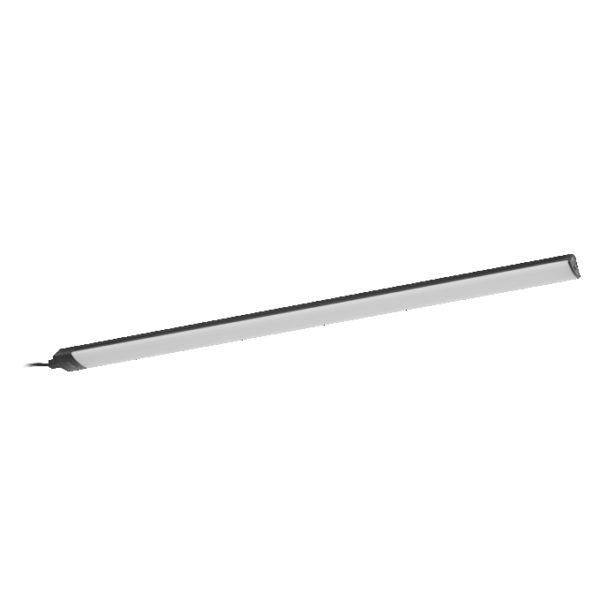

Linear Angle Flood Sensor 55cm CCT DIM Black

Linear Angle Flood Sensor 55cm CCT DIM Black

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075842489 Категория:
Product benefits
  • Suitable for mounting in corners
  • Easy and quick series connection thanks to simple plug system
  • Seamless connection of up to 3 luminaires in a row via enclosed connector
  • Homogenous light distribution
Areas of application
  • Kitchens, Living areas, Shelf and undercabinet lighting
Product features
  • Low voltage luminaire for DC operation with external driver
  • Color temperature adjustable in three steps
  • Switch on and off and color change by movements with max. 6 cm distance in front of the infrared motion sensor
  • Stepless dimming by covering the infrared motion sensor in max. 6 cm distance for at least one second
  • 2 different lengths available
  • Lifetime up to 30,000 h
  • Material: Aluminium (Housing), Polycarbonate (Diffuser)
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
GTIN

4058075842489
Nominal wattage

7.50 W
Nominal voltage

220…240 V
Nominal current

51.000 mA
Luminous flux

480 lm
Luminous efficacy

64 lm/W
Color temperature

3000…4000…6500 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

< 6 sdcm
Photobiological safety group acc. to EN62778

RG1
Beam angle

110 °
Height

18.00 mm
Product weight

249.00 g
Product color

Black
Housing color

Black
Body material

Aluminum
Ambient temperature range

-20…+40 °C
Temperature range at storage

-20…+80 °C
Type of connection

Plug type C (EU)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

30000 h 1)
Number of switching cycles

15000
Standards

CE
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Wa
Protection class

III
Mercury content

0.0 mg
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

8.8 A
Inrush current time Th50

120 µs
Power factor λ

≥0.5
Total harmonic distortion

130 %
Operating mode

Mains voltage
Glow Wire Test according to IEC 60695-2-12

650 °C
Total luminous flux of contained light sources

490 lm
Max. number of luminaires per miniature circuit breaker B16

76
Max. number of luminaires per miniature circuit breaker C10

56
Max. number of luminaires per miniature circuit breaker C16

90
Length

550.00 mm
Width

36.00 mm
Type of dimming

PIR STEP
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Type of sensor

Infrared sensor
Sensor technology

Passive infrared (PIR)
Detection range of motion sensor

60 mm
Cable length

1500 mm
Adjustable

No
