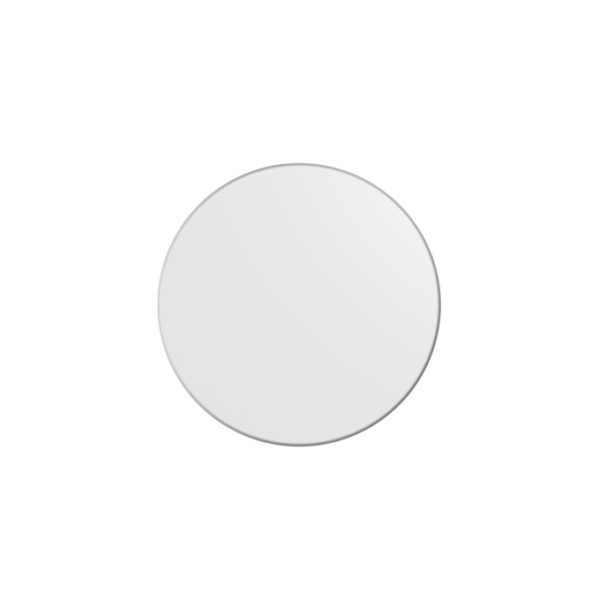

LISOEV 330 R 19W 830 840 SF FLAT

LISOEV 330 R 19W 830 840 SF FLAT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854312212 Категория:
Product benefits
  • 3000 K and 4000 K LEDs integrated
  • Indoor use with high luminous efficacy of up to 140 lm/W
  • High color consistency with SDCM 3
  • Tool-free electrical connection with plug connectors
  • Very homogenous light with a slight backlight effect
  • Prepared for SURFACE FLAT SENSOR integration
  • 5 years guarantee
Areas of application
  • Suitable for SURFACE FLAT 19 W / 27 W
Product features
  • Type of protection: IP20
  • Polycarbonate (PC) housing, PC-diffuser
  • Lifetime (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C)
  • Impact resistance: IK08
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
  • Indoor use only, not suitable for outdoor use
Equipment / Accessories
  • Connection wire for direct installation integrated
References / Links
  • For Guarantee see
GTIN

4099854312212
Nominal wattage

16.0 W
Nominal voltage

30…40 V
Nominal current

450 mA
Luminous flux

2660 lm
Luminous efficacy

140 lm/W
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

3 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

53.00 mm
Product weight

882.00 g
Product color

White
Housing color

White
Body material

Polycarbonate (PC)
Ambient temperature range

-20…+45 °C
Temperature range at storage

-40…+80 °C
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

10000 h
Standards

CE
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Diameter

330.00 mm
Mounting type

Surface
Mains frequency

50…60 Hz
Replaceable light source (EPREL)

Not replaceable
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Added function

EVERLO
Lifespan L80/B10 at 25 °C

100000 h
Lifespan L90/B10 at 25 °C

50000 h
