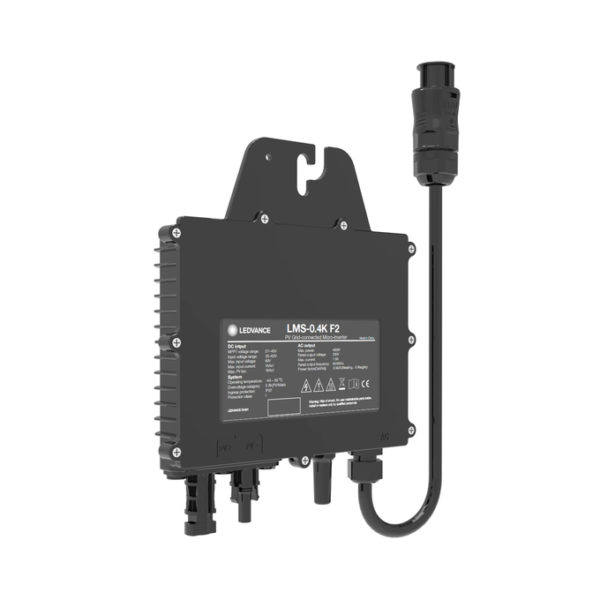

LMS 0.4K F2

LMS 0.4K F2

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854583544 Категория:
Product benefits
  • Flexibility for panel layout and expansion
  • Outdoor applications only
  • No additional Wi-Fi transmitter needed
  • Easy operation and installation
  • Cooling by natural convection
  • 12 years of product guarantee
Areas of application
  • Residential installations
  • Both roof and balcony systems
Product features
  • Compact size
  • Type of protection: IP67
  • Wi-fi communication
  • Wide operating temperature range: -40…+65 °C
Equipment / Accessories
  • Additional DC connectors for the outlets on the microinverter are included
  • AC connector included
  • Mounting screws included
  • Antenna included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854583544
Height

195 mm
Product weight

1600.000 g
Product color

Black
Ambient temperature range

-45…+65 °C
Type of connection

MC4-Compatible
Type of protection

IP67
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Length

197 mm
Width

36 mm
Input voltage DC

60 V
Temperature range in operation

-45…+65 °C
Suitable for emergency power

No
Outdoor application

Yes
Usable battery capacity

No
Output phases

Single phase
Max. input power DC

480 W
MPP voltage

27-45 V
Max. input current DC

16 A
Max. input current DC per string input

16 A
Max. input current DC per MPP tracker

30 A
Max. short circuit current per MPPT

18 A
Number of independent MPPT inputs

1
String connections per MPPT input

1
Nominal output power AC

400 W
Integrated DC switch

No
Connection DC for battery

No
Charging controller integrated

No
With data logging

Yes
Wireless

Yes
Ethernet

No
Integrated transformer

Yes
Maximum efficiency

95 %
European efficiency

94 %
Number of string connections

1
Number of applicable PV modules

1
CEC efficiency (US products)

94 %
