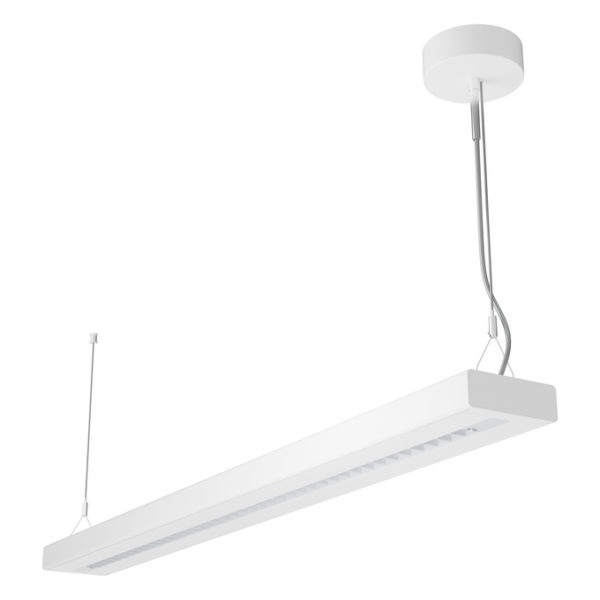

LN INV DI 1500 P 69W 940 DA EL WT

LN INV DI 1500 P 69W 940 DA EL WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854297892 Категория:
Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
  • High performance with CRI90 and up to 130 lm/W
  • Highly versatile due to selectable lumen steps (Multi Lumen) on the driver
  • Symmetric light distribution for various application areas
  • High color consistency with SDCM 3
  • Multiple mounting options thanks to different accessories
Areas of application
  • Emergency illumination of escape routes
  • Buildings requiring up to 3 h emergency light operation
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, education, public buildings
  • Single and continuous line configuration
  • Direct and indirect lighting
Product features
  • Certified according to European norms (EN 60598-2-22)
  • Luminaire suitable for normal lighting and emergency lighting
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Includes EVERLOOP: Convenient replacement of light source and LED driver
  • Linkable into seamless light line with accessories (surface or pendant mounting)
  • Pendant mounting with suspension kit (to be ordered separetely)
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
  • Suspension kit available for pendant luminaire version (to be ordered separately)
  • Inline, corner and infill connectors available as separate accessory
  • Through-wiring cable kit available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4099854297892
Nominal wattage

69 W / 63 W / 60 W / 54 W
Nominal voltage

220…240 V
Nominal current

308mA / 285mA / 270mA / 240 mA
Luminous flux

8700 lm / 8150 lm / 7600 lm / 7050 lm
Luminous efficacy

126 lm/W / 129 lm/W / 127 lm/W / 131 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥90
Standard deviation of color matching

3 sdcm
Flickering metric (Pst LM)

≤1
Stroboscope effect metric (SVM)

≤0.4
Photobiological safety group acc. to EN62778

RG1
Beam angle

90 ° + 130 °
Height

43.00 mm
Product weight

4400.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

0…+40 °C
Temperature range at storage

-25…+25 °C
Type of connection

Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP20
Dimmable

Yes
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) — (3147-75-9)
Mounting type

Suspended
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polymethylmethacrylate (PMMA)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

0/50/60 Hz
Inrush current

16 A
Inrush current time Th50

200 µs
Power factor λ

> 0.90
Total harmonic distortion

≤ 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Only by an expert
Max. number of luminaires per miniature circuit breaker B16

23
Max. number of luminaires per miniature circuit breaker C10

20
Max. number of luminaires per miniature circuit breaker C16

32
Protection class IK (shock resistance)

IK06
Length

1475.00 mm
Width

125.00 mm
Type of dimming

DALI
Application environment

Indoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Nominal capacity of battery

4500 mAh
Added function

EVERLO
Lifespan L80/B10 at 25 °C

70000 h 1)
Number of illuminants

2
Battery charging time

24 h
Adjustable

No
Light emitting surface material

Polymethylmethacrylate (PMMA)
Luminous flux in emergency operation mode

440 lm
Battery life in emergency operation mode

3 h
UGR

< 19
Output current

1400mA / 1300mA / 1200mA / 1100 mA
Lifespan L90/B10 at 25 °C

35000 h
Type of emergency light operation

Non-maintain
Surge capability (L-N)

1000 V
Surge capability (L/N-Ground)

2000 V
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

2.3 W
ECG - Output ripple current

≤ 3 %
Type of Emergency Lighting (EL)

EL unit (battery and controller) for decentral operation includ
IoT ready

Support of DALI data type PART 251, 252, 253 1)
Recommended control gear

OSRAM type ETI DALI 75/220-240/1A4 LT2
Area of emergency application

Anti-panic lighti
69 W

126 lm/W
63 W

129 lm/W
54 W

131 lm/W
60 W

127 lm/W
