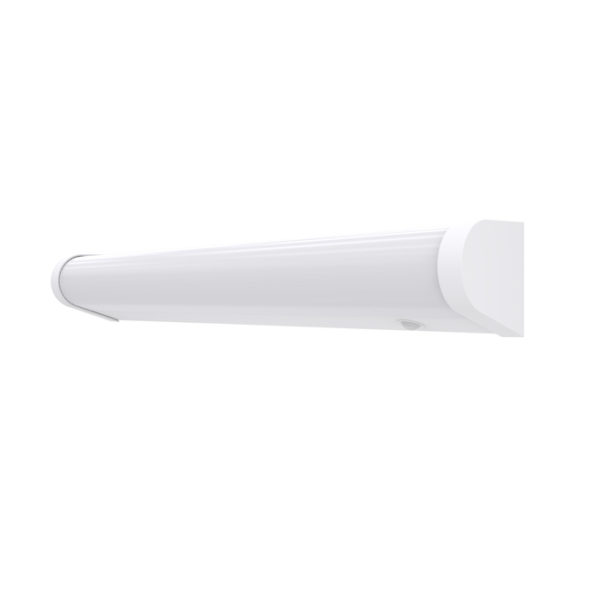

LN MR SN 600 P 11W ML 83040

LN MR SN 600 P 11W ML 83040

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854401817 Категория:
Product benefits
  • Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
  • High color consistency with SDCM 3
  • Tool-free electrical connection due to push button connector
  • Toolless assembly of the luminaire
Areas of application
  • Sanitary areas
  • Bathrooms (IP44)
  • Direct replacement for luminaires with indcandescent or fluorescent lamps
Product features
  • Wall-mounted luminaire with direct light emission
  • Preset PIR sensor integrated in the luminaire
  • Type of protection: IP44
  • Impact resistance: IK03
  • White painted metal housing (like RAL: 9003)
  • Through-wiring possible
  • Lifetime (L80/B10): up to 75,000 h (at 25 °C)
  • Diffuser and end cap material: Polycarbonate (PC)
  • Luminaire length: 560 mm
  • High luminous efficacy: up to 130 lm/W
Equipment / Accessories
  • Mounting screws and dowels included
  • Chrome-plated end caps available separately for visual enhancement
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4099854401817
Nominal wattage

11 W / 8 W / 6 W
Nominal voltage

220…240 V
Nominal current

290…210…150 mA
Luminous flux

1430 lm / 1040 lm / 780 lm 1)
Luminous efficacy

130 lm/W 2)
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

< 3 sdcm
Flickering metric (Pst LM)

< 1
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

120 °
Height

82.00 mm
Product weight

800.00 g
Product color

White
Housing color

White
Body material

Aluminum
Ambient temperature range

-20…+45 °C
Temperature range at storage

-20…+80 °C
Type of connection

Screwless terminal, 3-POLE (L, N, PE)
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

100000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface
Mounting location

Wall
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

Yes
Mains frequency

50…60 Hz
Inrush current

12 A
Inrush current time Th50

120 µs
Power factor λ

> 0.90
Total harmonic distortion

< 30 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

750 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

52
Max. number of luminaires per miniature circuit breaker C10

39
Max. number of luminaires per miniature circuit breaker C16

62
Protection class IK (shock resistance)

IK03
Photobiological safety group acc. to EN62471

RG0
Length

561.00 mm
Width

82.00 mm
Application environment

Indoor
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

75000 h 1)
Type of sensor

Daylig
Sensor technology

Passive infrared (PIR)
Sensor detection angle

120 °
Detection range of motion sensor

1…3 m
Adjustable

No
Detection threshold of daylight sensor

5…35 lx
Light emitting surface material

Polycarbonate (PC)
Sensor controlled switching time

30 s
Output current

290…210…150 mA
Lifespan L90/B10 at 25 °C

50000 h
Low flicker

Yes
RAL Color (most similar)

RAL 9016
ECG - Output ripple current

< 30 %
EPD

LEDV-00044-V01.01-EN
8 W

130 lm/W
6 W

130 lm/W
11 W

130 lm/W
