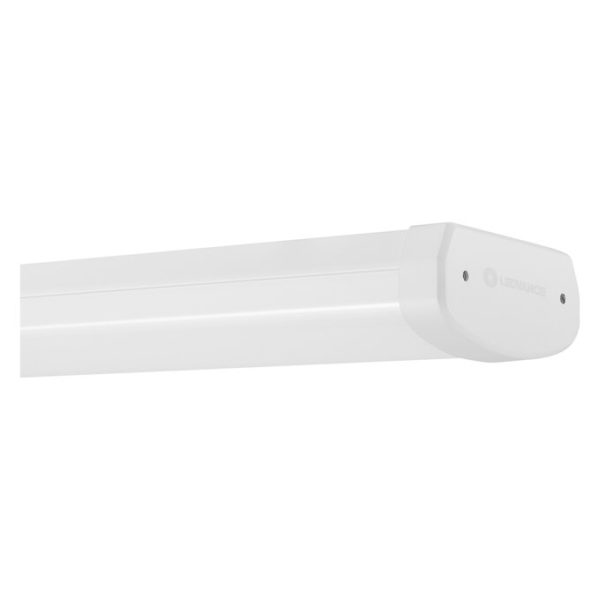

LN SF IP44 EM 1200 36 W 4000 K WT

LN SF IP44 EM 1200 36 W 4000 K WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075402973 Категория:
Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • 3 years guarantee
  • Low maintenance and low operational costs
  • Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Efficient replacement for traditional T8 and T5 luminaires
  • Public buildings
  • Corridors, stairways
Product features
  • Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
  • Luminaire suitable for normal lighting and emergency lighting
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Ambient temperature in operation: 5°…+40 C
  • Surface mounted luminaires with direct light emission
  • Type of protection: IP44
  • Impact resistance: IK08
  • Available in 2 different lengths: 1200 mm and 1500 mm
  • High luminous efficacy: up to 115 lm/W
Equipment / Accessories
  • Accessories for suspension available
  • Mounting screws and dowels included
References / Links
  • For Guarantee see
GTIN

4058075402973
Nominal wattage

36.00 W
Nominal voltage

220…240 V
Nominal current

180 mA
Luminous flux

4000 lm
Luminous efficacy

100 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

≤4 sdcm
Flickering metric (Pst LM)

—
Stroboscope effect metric (SVM)

—
Photobiological safety group acc. to EN62778

RG1
Beam angle

120 °
Height

64.50 mm
Product weight

2400.00 g
Product color

White
Housing color

White
Body material

Stainless steel
Ambient temperature range

+5…+40 °C
Temperature range at storage

5…+35 °C
Type of connection

Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection

IP44
Dimmable

No
Lifespan L70/B50 at 25 °C

60000 h 1)
Number of switching cycles

25000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
Replaceable light source

No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead (7439-92-1)
Mounting type

Surface/Suspended
Mounting location

Ceiling
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

15.6 A
Inrush current time Th50

265 µs
Power factor λ

≥0.90
Total harmonic distortion

≤ 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

16
Max. number of luminaires per miniature circuit breaker C10

16
Max. number of luminaires per miniature circuit breaker C16

25
Protection class IK (shock resistance)

IK08
Photobiological safety group acc. to EN62471

RG0
Length

1199.00 mm
Width

145.00 mm
Application environment

Indoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Nominal capacity of battery

4500 mAh
Luminous intensity

—
Lifespan L80/B10 at 25 °C

40000 h 1)
Number of illuminants

—
Battery charging time

< 24 h
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

350 lm
Battery life in emergency operation mode

3 h
Output current

1050 mA
Lifespan L90/B10 at 25 °C

25000 h
Type of emergency light operation

Maintain
Luminous flux in maintained operation mode

4000 lm
Integrated test switch

No
Low flicker

Yes
Wattage in emergency operation mode

3,0 W
Area of emergency application

Anti-panic lighti
Wattage in maintained operation mode

36 W
