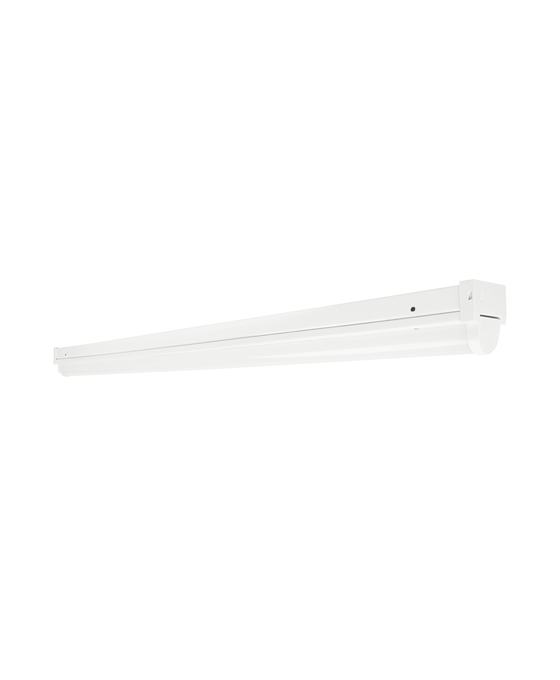

LN UO 1200 33 W 4000 K

LN UO 1200 33 W 4000 K

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075122161 Категория:
Product benefits
  • Replacement of conventional T8 luminaires with up to 7100 lm
  • Energy savings up to 60 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Indoor applications
  • Industrial and commercial halls
  • Public areas
  • Corridors, stairwells, basements
Product features
  • Very high luminous efficacy: up to 125 lm/W
  • Robust metal housing and PC diffuser
  • Wiring at back side of luminaire
  • Through wiring possible
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4058075122161
Nominal wattage

33.00 W
Nominal voltage

220…240 V
Nominal current

150 mA
Luminous flux

4000 lm
Luminous efficacy

120 lm/W
Color temperature

4000 K
Light color (designation)

Cool White
Color rendering index Ra

≥80
Standard deviation of color matching

≤5 sdcm
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

74.00 mm
Product weight

1260.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-10…+40 °C
Type of connection

Screwless terminal
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

50000 h 1)
Number of switching cycles

50000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Additional info can be provided per individual request
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

20 A
Inrush current time Th50

100 µs
Power factor λ

> 0.90
Total harmonic distortion

≤ 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

850 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

41
Max. number of luminaires per miniature circuit breaker C10

33
Max. number of luminaires per miniature circuit breaker C16

53
Protection class IK (shock resistance)

IK08
Length

1168.00 mm
Width

62.00 mm
Application environment

Indoor
Quantity of precious metals

Contains at least 10 mg
Quantity of rare earths

Contains at least 1 mg
Lifespan L80/B10 at 25 °C

40000 h 1)
Light emitting surface material

Polycarbonate (PC)
Lifespan L90/B10 at 25 °C

30000 h
