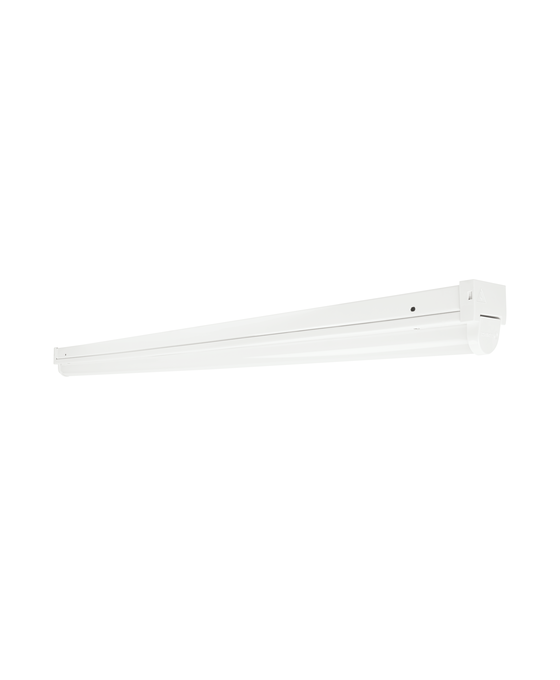

LN UO EL 1200 P 27W ML 83040 WT

LN UO EL 1200 P 27W ML 83040 WT

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4058075850453 Категория:
Product benefits
  • Highly versatile due to selectable CCT and lumen steps (Multi Select)
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • Replacement of conventional T8 luminaires with up to 7200 lm
  • Energy savings up to 70 % (compared to luminaires that use fluorescent lamps)
  • Robust structure with IK08
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Direct replacement for luminaires with fluorescent lamps
  • Indoor applications
  • Industrial and commercial halls
  • Public areas
  • Corridors, stairwells, basements
Product features
  • Certified according to European norms (EN 60598-1:2020; EN 60598-2-22:2021)
  • Luminaire suitable for normal lighting and emergency lighting
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Very high luminous efficacy: up to 150 lm/W
  • Robust metal housing and PC diffuser
  • Wiring at back side of luminaire
  • Through wiring possible
Equipment / Accessories
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • For Guarantee see
GTIN

4058075850453
Nominal wattage

27 W / 23.5 W / 20.0 W / 16.5 W
Nominal voltage

220…240 V
Nominal current

147/133/121/108 mA
Luminous flux

4050 lm / 3525 lm / 3000 lm / 2475 lm 1)
Luminous efficacy

150 lm/W 2)
Color temperature

3000 K / 4000 K
Light color (designation)

Warm Whi
Color rendering index Ra

> 80
Standard deviation of color matching

< 3 sdcm
Stroboscope effect metric (SVM)

< 0.4
Photobiological safety group acc. to EN62778

RG0
Beam angle

110 °
Height

74.00 mm
Product weight

1440.00 g
Product color

White
Housing color

White
Body material

Steel
Ambient temperature range

-20…+40 °C
Temperature range at storage

-40…+80 °C
Type of connection

Screwless terminal
Type of protection

IP20
Dimmable

No
Lifespan L70/B50 at 25 °C

88000 h 1)
Number of switching cycles

100000
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

No
Replaceable light source

No
Mounting type

Surface
Mounting location

Ceili
Protection class

I
Mercury content

0.0 mg
Ball shot safe

No
Type of emergency operation test

Automatic
With light source

Yes
Cover material

Polycarbonate (PC)
Luminaire with limited surface temperature, "D sign"

No
Mains frequency

50…60 Hz
Inrush current

24 A
Inrush current time Th50

120 µs
Power factor λ

> 0.90
Total harmonic distortion

≤ 20 %
Operating mode

Integrated LED driver
Glow Wire Test according to IEC 60695-2-12

650 °C
Replaceable light source (EPREL)

Not replaceable
Max. number of luminaires per miniature circuit breaker B16

27
Max. number of luminaires per miniature circuit breaker C10

20
Max. number of luminaires per miniature circuit breaker C16

33
Protection class IK (shock resistance)

IK08
Length

1168.00 mm
Width

65.00 mm
Application environment

Indoor
Battery size [GMS]

Others
Type of Battery

LiFePO4
Nominal voltage of battery

3.2 V
Nominal capacity of battery

6000 mAh
Added function

MULTI SELECT
Lifespan L80/B10 at 25 °C

70000 h 1)
Battery charging time

< 24 h
Adjustable

No
Light emitting surface material

Polycarbonate (PC)
Luminous flux in emergency operation mode

450 lm
Battery life in emergency operation mode

3 h
Type of emergency light operation

Maintain
Integrated test switch

No
Low flicker

Yes
RAL Color (most similar)

RAL 9003
Wattage in emergency operation mode

3,0 W
Area of emergency application

Anti-panic lighti
Wattage in maintained operation mode

27 W
20 W

140 lm/W
27 W

140 lm/W
23.5 W

140 lm/W
16.5 W

140 lm/W
