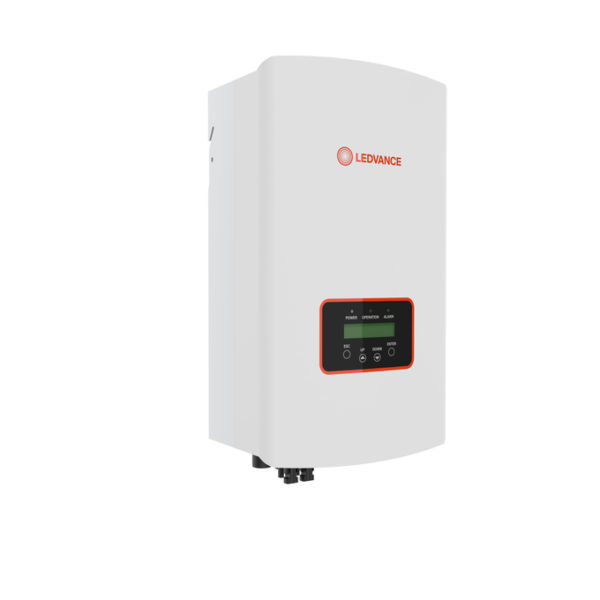

LS 2.5K F2-DC-AFCI-WIET

LS 2.5K F2-DC-AFCI-WIET

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854168185 Категория:
Product benefits
  • 10 years of product guarantee
  • Built-in LCD display
  • Low startup voltage starting from 60 V
  • AFCI protection, proactively reduces fire risk
  • Level II surge protection on AC and DC side
Areas of application
  • Residential installations
Product features
  • Cooling by natural convection
  • Integrated DC switch
  • Protection rating: IP66
  • Original Stäubli MC4 connectors
Equipment / Accessories
  • Mounting bracket included
  • Data logger included
  • AC connector included
  • Supplied with user manual
  • Additional DC connectors for the outlets on the inverter
  • RJ45 connector included
  • Fastening screws included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854168185
Height

543 mm
Product weight

11000.000 g
Product color

White
Ambient temperature range

-25…+60 °C
Type of connection

Staubli MC4
Type of protection

IP66
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Bisphenol A (BPA) (80-05-7) Tetraboron disodium heptaoxide, hydrate (12267-73-1) Boric Acid Orthoboric acid, sodium salt (13840-56-7) Lead (7439-92-1) 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (71868-10-5 ) Dodecamethylcyclohexasiloxane _D6
Length

310 mm
Width

160 mm
Input voltage DC

250 V
Temperature range in operation

-25…+60 °C
Suitable for emergency power

No
Outdoor application

No
Output phases

Single phase
Max. input power DC

3.75 kW
MPP voltage

50 — 450 V
Max. input current DC

14 A
Max. input current DC per string input

14 A
Max. input current DC per MPP tracker

14 A
Max. short circuit current per MPPT

22 A
Number of independent MPPT inputs

2
String connections per MPPT input

1
Nominal output power AC

2.5 kW
Integrated DC switch

Yes
Connection DC for battery

No
Charging controller integrated

No
With data logging

Yes
Wireless

Yes
Display

Standard
Ethernet

Yes
Integrated transformer

No
Maximum efficiency

97.30 %
European efficiency

96.50 %
