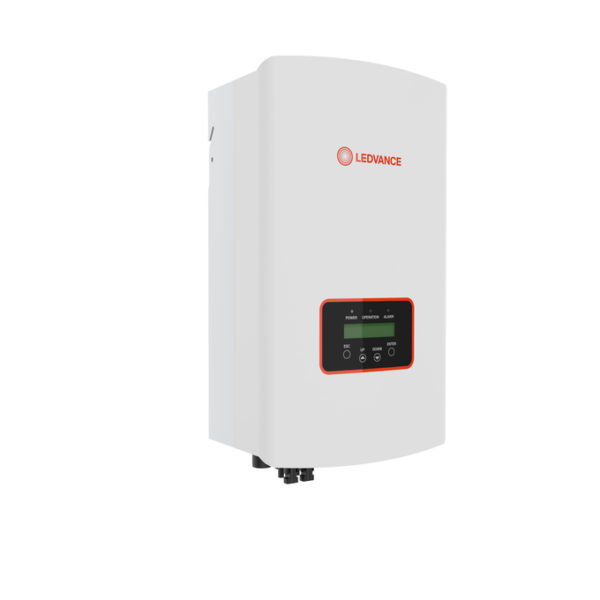

LS 4K F2-DC-AFCI-WIET

LS 4K F2-DC-AFCI-WIET

Цена по запросу

Уточните цену и наличие у менеджера

Позвонить

Артикул: 4099854168611 Категория:
Product benefits
  • 10 years of product guarantee
  • Built-in LCD display
  • Low startup voltage starting from 60 V
  • AFCI protection, proactively reduces fire risk
  • Level II surge protection on AC and DC side
Areas of application
  • Residential installations
Product features
  • Cooling by natural convection
  • Integrated DC switch
  • Protection rating: IP66
  • Original Stäubli MC4 connectors
Equipment / Accessories
  • Mounting bracket included
  • Data logger included
  • AC connector included
  • Supplied with user manual
  • Additional DC connectors for the outlets on the inverter
  • RJ45 connector included
  • Fastening screws included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For Guarantee see
GTIN

4099854168611
Height

543 mm
Product weight

11000.000 g
Product color

White
Ambient temperature range

-25…+60 °C
Type of connection

Staubli MC4
Type of protection

IP66
Minimum rate of recycled material in packaging

80 % 1)
Minimum percentage of recycled content in the product

0 % 1)
Product recyclability

Mostly recyclable product 1)
Packaging recyclability

Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage

No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage

Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

Lead, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, Bisphenol A (BPA), Boric Acid, Diboron trioxide, Disodium octaborate anhydrous, Disodium tetraborate pentahydra
Length

310 mm
Width

160 mm
Input voltage DC

330 V
Temperature range in operation

-25…+60 °C
Suitable for emergency power

No
Outdoor application

No
Output phases

Single phase
Max. input power DC

6 kW
MPP voltage

90 — 520 V
Max. input current DC

14 A
Max. input current DC per string input

14 A
Max. input current DC per MPP tracker

14 A
Max. short circuit current per MPPT

22 A
Number of independent MPPT inputs

2
String connections per MPPT input

1
Nominal output power AC

4 kW
Integrated DC switch

Yes
Connection DC for battery

No
Charging controller integrated

No
With data logging

Yes
Wireless

Yes
Display

Standard
Ethernet

Yes
Integrated transformer

No
Maximum efficiency

97.60 %
European efficiency

97.10 %
